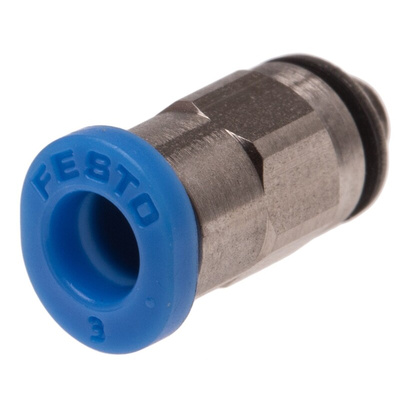

QSM-M3-3, Festo QS Series Straight Threaded Adaptor, M3 Male to Push In 3 mm, Threaded-to-Tube Connection Style, 153301, Переходник

QSM Mini Push-in Fitting

The Quick Star QSM range offer a convenient mini push-in fitting system for compressed air and water with over 1000 types of standard and function fittings. These high quality, male threaded to tube adapters offer a variety of Metric, G parallel or R tapered threads and diameters to suit each and every connection.

Features and Benefits

• Mini size push-in fitting, ideal for confined spaces


• Maximum flexibility for each pneumatic fitting


• Effortless, quick and simple push-in installation


• Threaded to tube (hose) connection style for use in pneumatic applications


• Wide operating temperature range of -10 to +80°C


• Air pressure ranges of up to 14 bar


• Available with a variety of different thread and diameter connector sizes


• Robust, solid nickel-plated brass with high resistance to corrosion

Push-in Fitting QSM-M3-3

• Corrosion resistance classification of 1 to protect against low corrosion stress


• Nominal tightening torque of 0.48Nm


• M3 male pneumatic connection


• The mini fitting is lightweight at 1.1g

Festo Push-in fittings and connectors QS

QSM-M3-3 Specification Sheet
