QSM-M5-4-I, Festo QS Series Straight Threaded Adaptor, M5 Male to Push In 4 mm, Threaded-to-Tube Connection Style, 153315, Переходник

FESTO QSM Mini Push-in Fittings

The Quick Star QSM range offers a convenient push-in fitting system which is for compressed air and water. This range features over 1000 types of standard and function fittings. These high quality, male threaded to tube adapters offer a variety of Metric, G parallel or R tapered threads and diameters to suit each and every connection.

Features & Benefits

• Mini size push-in fitting, ideal for confined spaces
• Maximum flexibility for each pneumatic fitting
• Effortless, quick and simple push-in installation

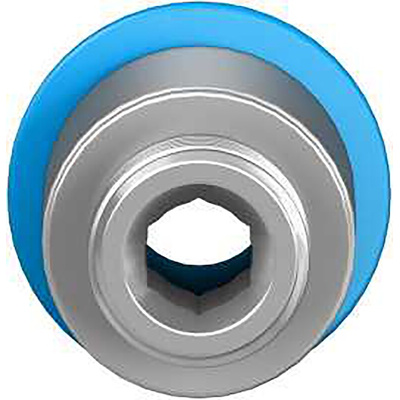

• Internal Hex offers an aesthetically pleasing finish
• Threaded to tube (hose) connection style for use in pneumatic applications
• Wide operating temperature range of -10 to +80°C
• Air pressure ranges of up to 14 bar
• Available with a variety of different thread and diameter connector sizes
• Robust, solid nickel-plated brass with high resistance to corrosion

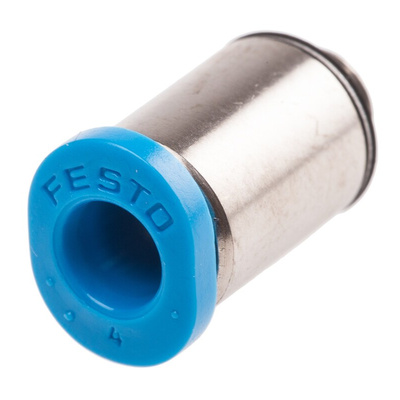

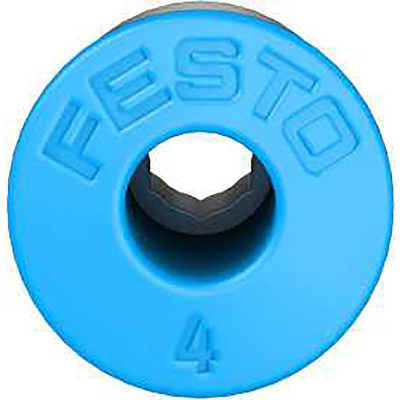

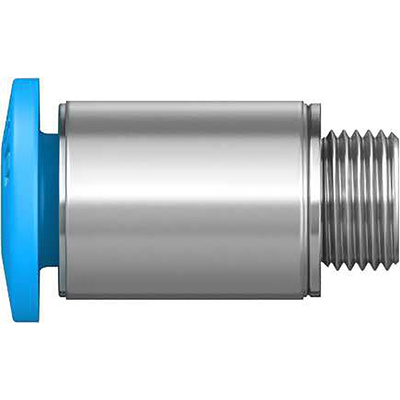

FESTO Push-in Fitting - QSM-M5-4-I

• Corrosion resistance classification of 1 to protect against low corrosion stress
• The materials conform to RoHS
• M5 male thread pneumatic connection
• The mini fitting is lightweight at 3g
• Push-pull principle design structure
• Nominal tightening torque of 1.33 Nm
• Mini size
• 2.5 mm nominal size
• Features a push/pull principle design structure
• Brass and nickel-plated housing

Festo Push-in Fittings & Connectors QS

QSM-M5-4-I Specification Sheet
