QSM-M5-6, Festo Threaded-to-Tube Pneumatic Fitting, M5 to, Push In 6 mm, QS Series, 14 bar, Переходник

QSM Mini Push-in Fitting

The Quick Star QSM range offer a convenient mini push-in fitting system for compressed air and water with over 1000 types of standard and function fittings. These high quality, male threaded to tube adapters offer a variety of Metric, G parallel or R tapered threads and diameters to suit each and every connection.

Features and Benefits

• Mini size push-in fitting, ideal for confined spaces


• Maximum flexibility for each pneumatic fitting


• Effortless, quick and simple push-in installation


• Threaded to tube (hose) connection style for use in pneumatic applications


• Wide operating temperature range of -10 to +80°C


• Air pressure ranges of up to 14 bar


• Available with a variety of different thread and diameter connector sizes


• Robust, solid nickel-plated brass with high resistance to corrosion

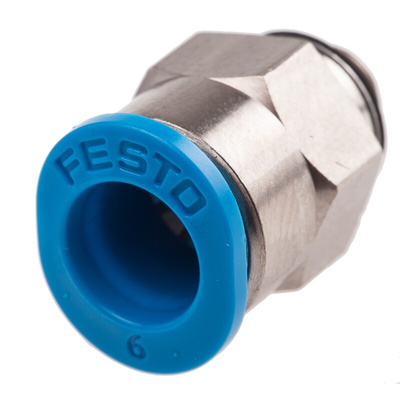

Push-in Fitting QSM-M5-6

• Corrosion resistance classification of 1 to protect against low corrosion stress


• Nominal tightening torque of 1.33Nm


• M5 male pneumatic connection


• The mini fitting is lightweight at 4.5g

Festo Push-in fittings and connectors QS

QSM-M5-6 Specification Sheet
