QSM-M7-4-I, Festo QS Series Straight Threaded Adaptor, M7 Male to Push In 4 mm, Threaded-to-Tube Connection Style, 153319, Переходник

FESTO QSM Mini Push-in Fittings

The Quick Star QSM range offers a convenient push-in fitting system which is for compressed air and water. This range features over 1000 types of standard and function fittings. These high quality, male threaded to tube adapters offer a variety of Metric, G parallel or R tapered threads and diameters to suit each and every connection.

Features & Benefits

• Mini size push-in fitting, ideal for confined spaces
• Maximum flexibility for each pneumatic fitting
• Effortless, quick and simple push-in installation
• Internal Hex offers an aesthetically pleasing finish
• Threaded to tube (hose) connection style for use in pneumatic applications
• Wide operating temperature range of -10 to +80°C
• Air pressure ranges of up to 14 bar
• Available with a variety of different thread and diameter connector sizes
• Robust, solid nickel-plated brass with high resistance to corrosion

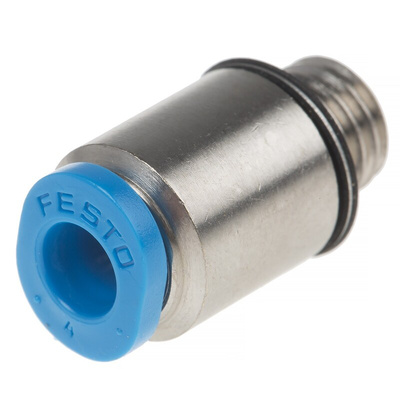

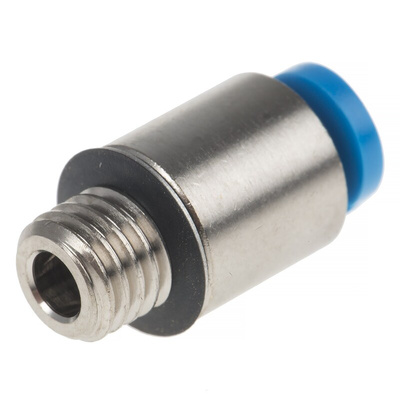

Push-in Fitting QSM-M7-4-I

• Corrosion resistance classification of 1 to protect against low corrosion stress


• The materials conform to RoHS


• M7 male thread pneumatic connection


• The mini fitting is lightweight at 6g


• Push-pull principle design structure


• Nominal tightening torque of 3.35 Nm

Festo Push-in fittings and connectors QS

QSM-M7-4-I Specification Sheet
