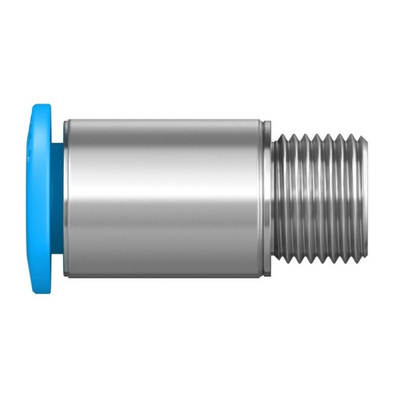

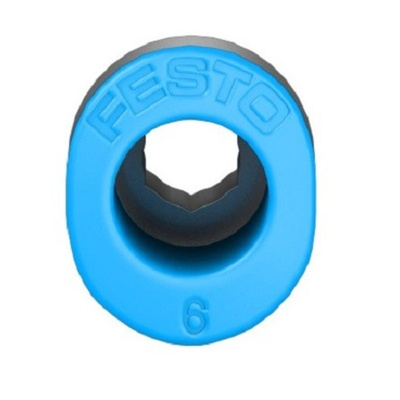

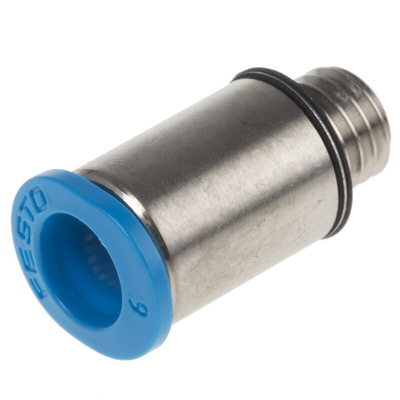

QSM-M7-6-I, Festo QS Series Straight Threaded Adaptor, M7 Male to Push In 6 mm, Threaded-to-Tube Connection Style, 153321, Переходник

Festo Pneumatic Fitting, Straight Threaded Adaptor, 14 Bar Maximum Operating Pressure - QSM-M7-6-I

For a reliable pipe-to-tube link in your pneumatic systems, choose this straight-threaded adaptor from Festo. One end of this unit has a male M7 thread made of durable brass that's resistant to corrosion for long-term use. On the other end, you'll find a 6mm push-in connector that enables easy fitting of pneumatic tubes. With an operating pressure range of -0.95 to 14 bar, this adaptor can be used for both low-pressure and high-pressure applications, making it a versatile solution.

• Broad ambient temperature range of -10°C to +80°C for use in challenging conditions
• Nitrile rubber seals prevent air leakages for optimal performance
• 3.35Nm nominal tightening torque for a secure, vibration-proof connection
• Low weight of 6.4g for easy handling during installation

Applications

• Robotics and automation systems
• Automotive equipment

How do I install this adaptor?

This adaptor is easy to install. Simply slide the air hose into the push-in fitting and screw the M7 connector onto the supply pipe to make a permanent link. Ensure you tighten the hold on the pipe with an appropriate wrench to prevent leakages.

Festo Push-in fittings and connectors QS

QSM-M7-6-I Specification Sheet
