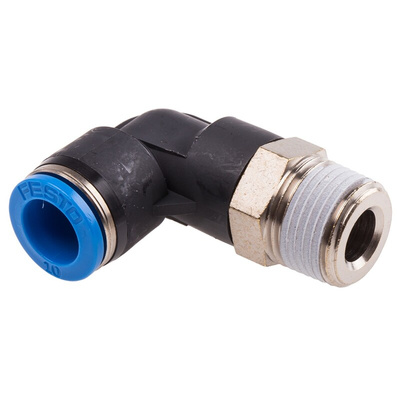

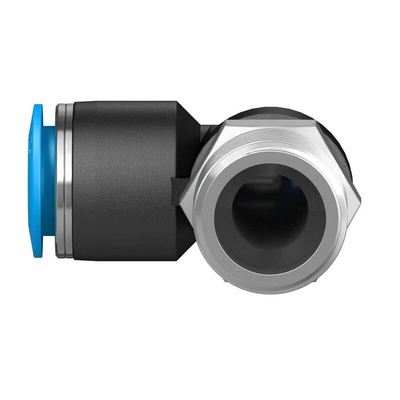

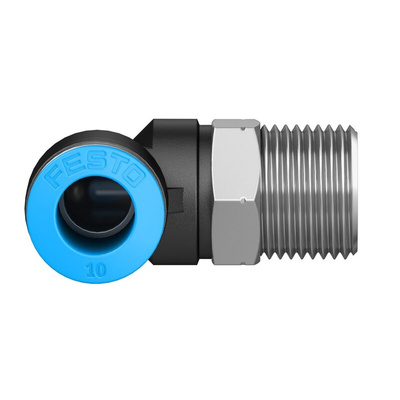

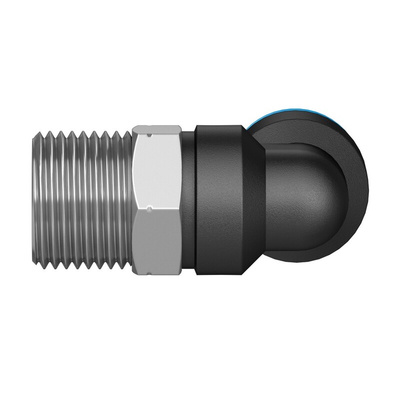

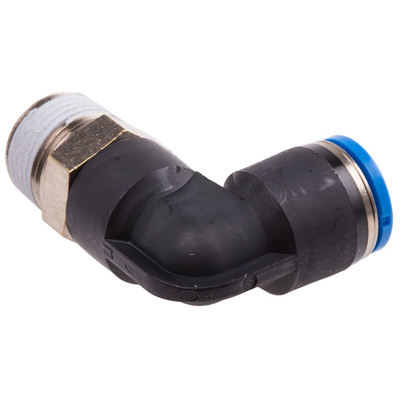

QSL-3/8-10, Festo QS Series Elbow Threaded Adaptor, R 3/8 Male to Push In 10 mm, Threaded-to-Tube Connection Style, 153052, Переходник

Festo Pneumatic Fitting, Elbow Threaded-to-Tube Adaptor, PBT Body Material - QSL-3/8-10

Build space-efficient pneumatic systems quickly and easily with this elbow adaptor from Festo's QS series. One end is a threaded R3/8 male connector and the other is a 10mm push-in connector that enables you to fit or withdraw tubing without any tools. To give you flexibility when building your installation, you can rotate the fitting in any direction. It's suitable for use with air pressures up to 14 bar, so it's a versatile choice.

• High-alloy steel retaining claw holds the tubing firmly in place without damaging it
• Nickel-plated brass thread resists corrosion
• Strong and durable PBT body
• Operating temperature range of -10°C to +80°C makes it suitable for use in harsh environments

Applications

• Factory automation
• Workbench equipment
• Manufacturing assembly lines
• Construction sector
• Irrigation systems

How do I connect and disconnect a pneumatic push-in fitting?

To connect a tube to a push-in fitting, simply push it in until it stops. To disconnect it, push the release ring back towards the fitting to disengage the retaining claw, then pull out the tube.
