QSLF-1/4-6-B, Festo QS Series Elbow Threaded Adaptor, G 1/4 Female to Push In 6 mm, Threaded-to-Tube Connection Style, 153275, Переходник

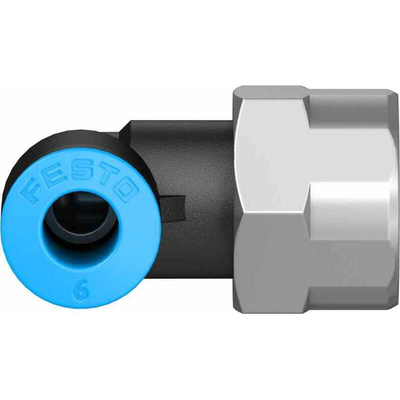

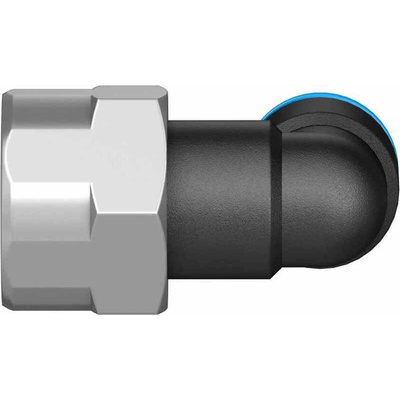

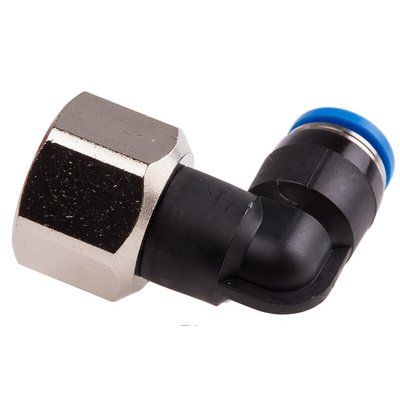

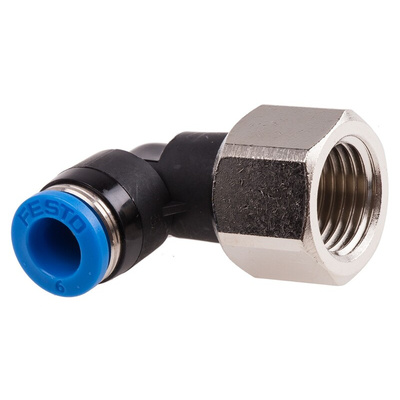

Festo Elbow Threaded Adaptor, G 1/4 Female to Push-In 6 mm - QS Series - QSLF-1/4-6-B

Want to make a quick and easy connection in your pneumatic system? This elbow adaptor from Festo will do the job with minimum effort. It has a G 1/4 female threaded connector on one end and a 6 mm push-in connector on the other, so you can easily build and disconnect tubing. The L-shaped component can be rotated in any direction, giving you flexibility and saving space. It's made from tough and durable thermoplastic and can handle pressures up to 14 bar and temperatures from -10 °C to +80°C, so it's suitable for use in a wide range of industrial environments.

• Nickel-plated brass thread resists corrosion
• PBT (polybutylene terephthalate) body is strong and lightweight
• Push-in connector allows quick and easy changes to the system

Application Information

• Conveyors and assembly lines
• Construction equipment
• Industrial machinery

Can this adaptor be used in food production systems?

This adaptor is not certified as food grade so should not be used where it will come into contact with food.
