QSLF-1/8-6-B, Festo QS Series Elbow Threaded Adaptor, G 1/8 Female to Push In 6 mm, Threaded-to-Tube Connection Style, 153274, Переходник

Festo Elbow Threaded Adaptor, G 1/8 Female to Push-In 6mm, 14 Bar - QSLF-1/8-6-B

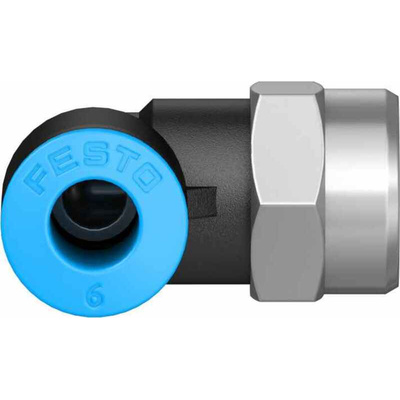

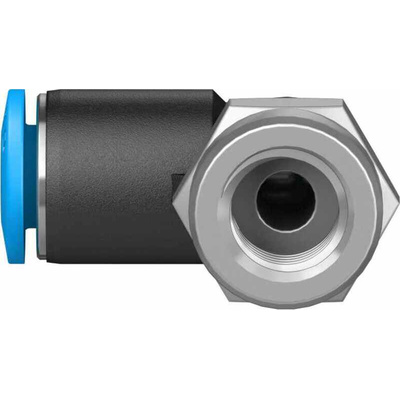

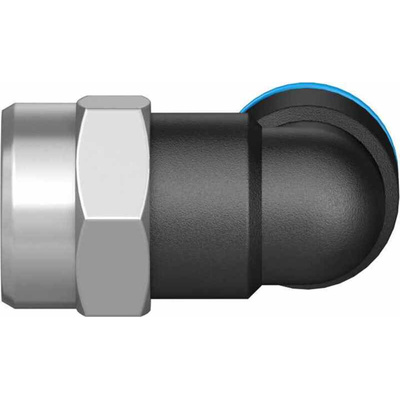

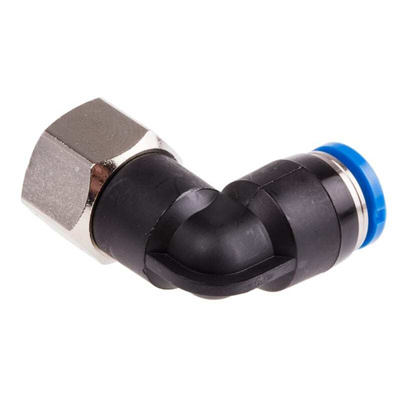

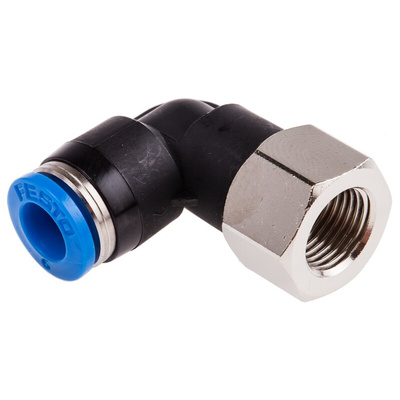

This elbow adaptor from Festo is used to establish connections and direct compressed air and fluid flow in pneumatic and hydraulic systems. On one end, there's a female threaded adaptor made of high-alloy steel for maximum durability and corrosion resistance. On the other end of the L-shaped unit, you'll find a thermoplastic push-in ring for easy installation and removal. This component is designed for heavy-duty tasks and can operate within a pressure range of 0.95 to 14 bar, making it suitable for a variety of industrial and design applications.

• 15g product weight, so it's easy to handle and won't strain your system
• Wide operating temperature range of -10°C to +80°C for safe use in harsh conditions
• Can be twisted in any direction for maximum flexibility
• Convenient screw-in and push-in installation doesn't need specialised tools

Applications

• Automotive industry
• Robotics and factory automation
• Compressors

What does this adaptor attach to?

The female tube, which is easily detachable, attaches to hoses. The threaded part is screwed onto pipes and is ideal for making a permanent connection.

Festo Push-in fittings and connectors QS

QSLF-1/8-6-B Specification Sheet
