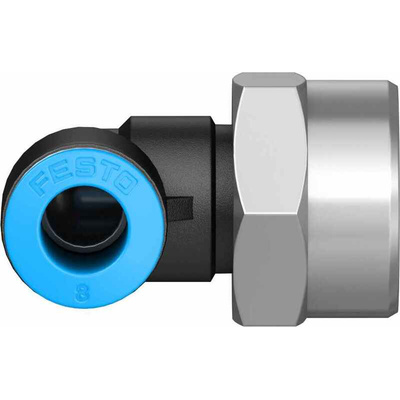

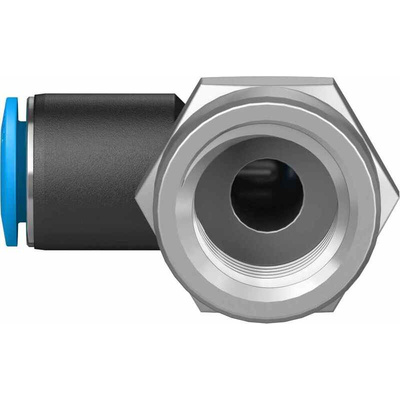

QSLF-3/8-8-B, Festo QS Series Elbow Threaded Adaptor, G 3/8 Female to Push In 8 mm, Threaded-to-Tube Connection Style, 153278, Переходник

Festo Elbow Threaded Adaptor G 3/8 Female to Push-in 8 mm - QS Series - QSLF-3/8-8-B

If you need to make a connection in a pneumatic system, pick this inline mounting elbow adaptor from Festo. It uses space efficiently and will give you a high degree of flexibility. As it can be used at temperatures from -10˚C to +80˚C and pressures from -0.95 bar to +6 bar (or up to +14 bar at certain temperatures), it's suitable for a wide variety of industrial environments. At one end is a G 3/8 female threaded connector, while the other has a push-in connector for tubing with an outside diameter of 8 mm. This allows for quick installation and easy changes to the system once installed.
This adaptor is built from strong and durable thermoplastic and corrosion-resistant high-alloy steel, with a nickel-plated brass thread. It's suitable for use with water or compressed air, and the nitrile rubber seals will stand firm against leakage. Fittings like these are vital for creating the airtight network pneumatic systems need to operate.

• 90° angle saves space when building systems
• PBT (polybutylene terephthalate) body material is resistant to chemicals and heat
• Maximum operating pressure of 14 bar enables use in highly pressurised systems
• Swivel connection offers flexibility of use

Festo Push-in fittings and connectors QS
