QSF-1/4-8-B, Festo QS Series Straight Threaded Adaptor, G 1/4 Female to Push In 8 mm, Threaded-to-Tube Connection Style, 153026, Переходник

1216161
Номер производителя: QSF-1/4-8-BПроизводитель: Festo
Цена за 1 упаковку (10 шт)
18252.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

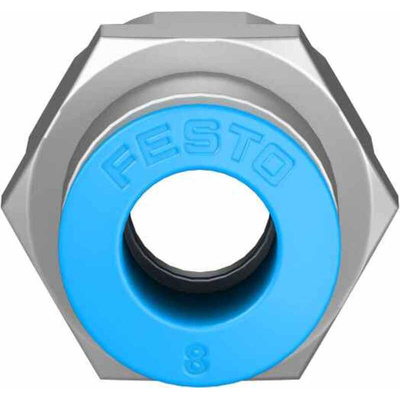

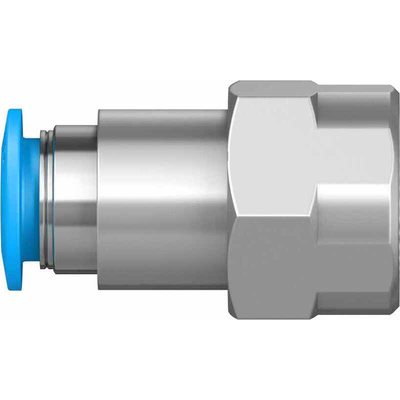

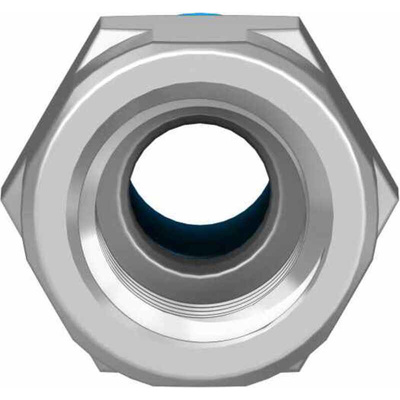

Festo Straight Threaded Adaptor, G 1/4 Female to Push-In 8mm - QS Series - QSF-1/4-8-B

Plug and work with this user-friendly pneumatic adaptor from Festo. The versatile component features a push-in hose connection that's easy to use and holds tubing securely without damaging its surface. Its high-alloy steel retaining claw absorbs vibration and pressure surges, improving levels of reliability and safety. No tools are needed to remove a hose as it's simply detached by pressing the fitting's releasing ring. This adaptor is suitable for both compressed air and water and has a maximum operating pressure of 14 bar.

• Nickel-plated brass body for exceptional resistance to corrosion
• Strong and robust metal design that stands up well in harsh industrial environments
• Can be assembled in any position and aligned after mounting for improved versatility in use
• Nitrile rubber (NBR) sealing ring ensures a tight seal between the tubing and the body of the fitting

Application Information

• Automation
• Robotics industry
• Medical and pharmaceutical manufacturing
• Materials handling

What size pneumatic hose can I use with this connector?

This Festo adaptor is compatible with tubing that has an outer diameter of 8mm.

Can this adaptor be removed and re-used?

Yes, this functional Festo adaptor can be re-used a number of times, thanks to its replaceable sealing ring on its threaded port.

Техническая спецификация
pdfFesto Push-in fittings and connectors QS
pdfQSF-1/4-8-B Specification Sheet
pdfBrochure - Tubing and Fittings
Внешнее покрытие:
Никелированный
Встречающиеся стандарты:
ISO8573-1
Входной порт:
G 1/4 Female
Выходной порт:
Push In 8 mm
Давление - максимальное рабочее:
14 бар
Кол-во выходных портов:
1
Количество входных портов:
1
Корпус - материал:
Латунь
Материал резьбы:
Латунь
Модель р:
153026
Монтажное отверстие:
ISO8573-1
Пищевой:
Нет
Производитель - серия:
QS
Рабочая температура - максимальная:
ISO8573-1
Рабочая температура - минимальная:
ISO8573-1
Разъем A:
G 1/4 Female
Разъем B:
Push In 8 mm
Резьбовое соединение:
G 1/4 Female
Стиль подключения:
Threaded-to-Tube
Тип монтажа:
Inline
Тип пневматического фитинга:
Straight Threaded Adaptor
Угол:
Прямой
Химическая устойчивость:
Нет
