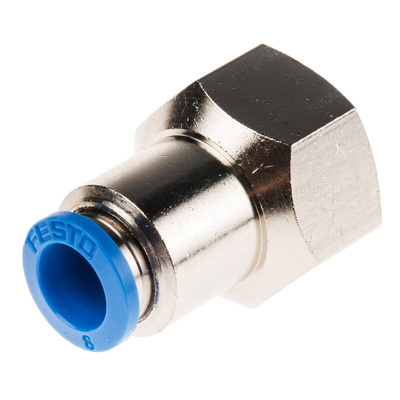

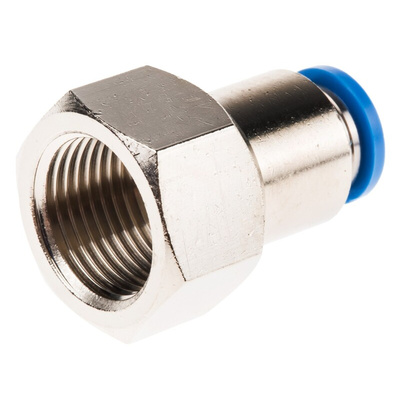

QSF-3/8-8-B, Festo QS Series Straight Threaded Adaptor, G 3/8 Female to Push In 8 mm, Threaded-to-Tube Connection Style, 153027, Переходник

FESTO QSF Push in Fittings – Female Thread with External Hex

The Quick Star QSF range offer a convenient push-in fitting system for compressed air and water with over 1000+ types of standard and function fittings. These high quality, female threaded to tube adapters offer a variety of Metric, G parallel or R tapered threads and diameters to suit each and every connection.

• Maximum flexibility for each pneumatic fitting
• Effortless, quick and simple push-in installation
• Threaded to tube (hose) connection style for use in pneumatic applications
• Wide operating temperature range of -10 to +80°C
• Air pressure ranges of up to 14 bar
• Available with a variety of different thread and diameter connector sizes
• Robust, solid nickel-plated brass with high resistance to corrosion

QSF-3/8-8-B Quick Star from FESTO push-in fitting for core pneumatic applications. The stainless-steel retaining claw within the fitting holds the tubing securely without damaging its surface.

Features and Benefits

• Reliably connected


• Nickel plater, therefore highly resistant to corrosion


• The fitting can be aligned after assembly


• Assembly position - any


• Operating medium - Compressed air in accordance with ISO8573-1:2010 [7:-:-]


• Product weight – 32g

Festo Push-in fittings and connectors QS

QSF-3/8-8-B Specification Sheet
