QSL-1/4-6, Festo QS Series Elbow Threaded Adaptor, R 1/4 Male to Push In 6 mm, Threaded-to-Tube Connection Style, 153047, Переходник

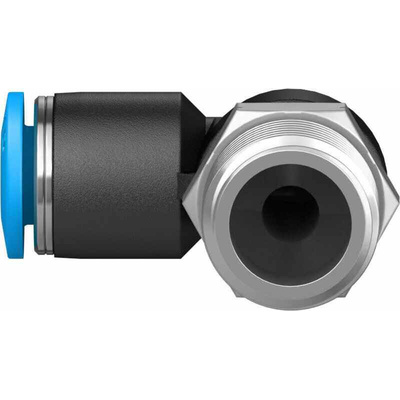

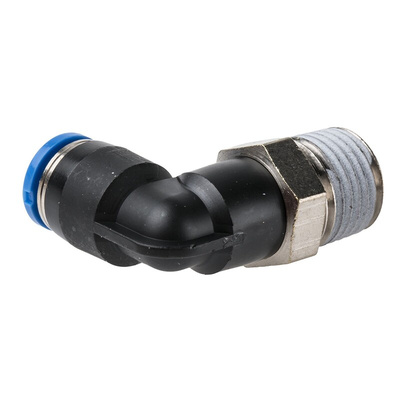

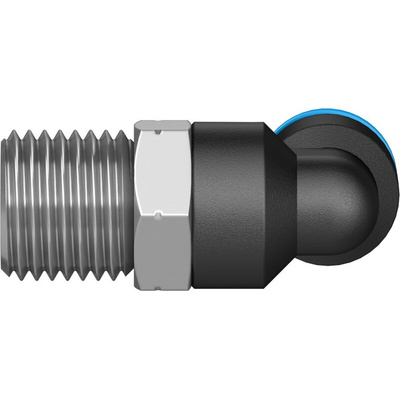

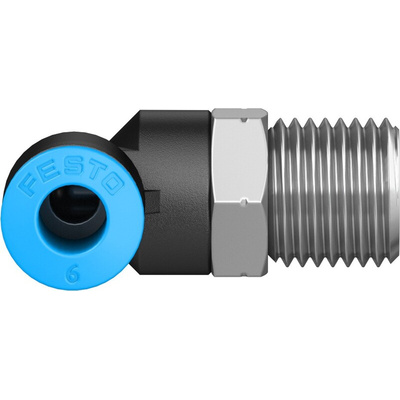

Festo Elbow Threaded Adaptor, R1/4 Male to 6mm Push-in Connector - QSL-1/4-6

Create an airtight network in your pneumatic equipment with this elbow threaded adaptor from Festo. It securely connects components like pipes and tubes to carry compressed air efficiently. The unit can be installed in any position to establish an L-shaped connection, and the convenient push-in fitting means it's quick and easy to assemble without additional tools. A swivel connection allows 360° movements so you can manipulate and adjust your fitting and tubing as needed.

• Wide operating temperature range from -10°C to +80°C for use in tough indoor and outdoor environments
• Strong and durable PBT (polybutylene) housing withstands damage caused by heat and chemicals and ensures a long service life
• Operating pressure range up to 14 bar for use with high-pressure applications
• Stainless steel retaining claw holds the tubing in place without causing damage

Applications

• Medical equipment
• Railway industry
• Automotive applications
• Industrial compressors
• Barostat systems

What's a threaded-to-tube pneumatic adapter?

Threaded-to-tube fittings like this one have a male threaded connector at one end and a female push-in port at the other. This lets you join otherwise incompatible pipes and tubes in your system.

Festo Push-in fittings and connectors QS

QSL-1/4-6 Specification Sheet

1216191_Catalogue_en
