QSL-10, Festo QSL Series Elbow Tube-toTube Adaptor, Push In 10 mm to Push In 10 mm, Tube-to-Tube Connection Style, 153073, Переходник

FESTO QSL Tube to Tube Elbow Push in Fittings

The Quick Star QSL range offer a convenient push-in fitting system for compressed air and water with over 1000+ types of standard and function fittings. These high quality, tube to tube adapters offer a variety of connections to suit each and every application.

Features and Benefits

• Maximum flexibility for each pneumatic fitting
• Effortless, quick and simple push-in installation
• L shaped elbow pneumatic fitting
• Tube to tube (hose) connection style for use in pneumatic applications
• Wide operating temperature range of -10 to +80°C
• Air pressure ranges of up to 14 bar
• Available with a variety of different fitting connector sizes
• Strong and durable thermoplastic (PBT)
• Can be rotated in any direction

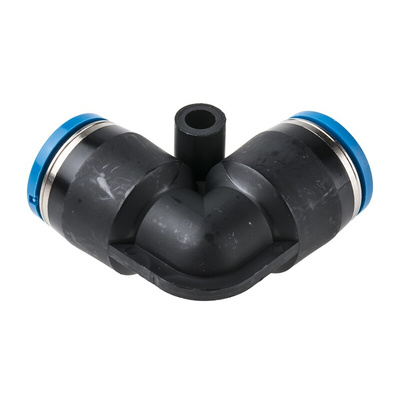

QSL-10 Quick Star L-Fitting from FESTO push-in fitting for core pneumatic applications. High alloy steel, non-corrosive retaining claw within the fitting holds the tubing securely without damaging its surface.

Features and Benefits

• Reliably connected


• The fitting can be aligned after assembly


• Assembly position - any


• Operating medium - Compressed air in accordance with ISO8573-1:2010 [7:-:-]


• Pneumatic connection, port 1 – for tubing with 10 mm outside diameter


• Pneumatic connection, port 2 – for tubing with 10 mm outside diameter


• Material release ring – Polyoxymethylene (POM)


• Material of tubing seal – Nitrile rubber (NBR)


• Conforms to RoHS

Festo Push-in fittings and connectors QS

QSL-10 Specification Sheet
