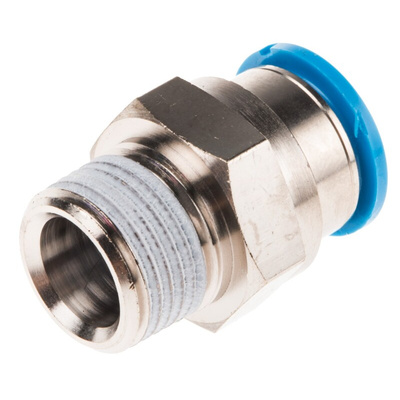

QS-3/8-12, Festo QS Series Straight Threaded Adaptor, R 3/8 Male to Push In 12 mm, Threaded-to-Tube Connection Style, 153009, Переходник

Festo Push-In Straight Threaded Adaptor, R3/8, 12mm - QS-3/8-12

Need to make a quick pneumatic connection? This push-in adaptor from Festo is designed for easy installation and provides a reliable connection. Simply push it into a tube for an instant, air-tight join that's resistant to shock and vibration, making it suitable for harsh industrial environments. A self-sealing thread on the other end of the fitting means no additional sealing surface is required. This connector can be reused up to five times for enhanced efficiency and convenience.

• Brass parts with a nickel-plated surface for enhanced corrosion resistance and improved longevity
• No damage is made to a hose's surface thanks to an innovative retaining claw
• Wide operating pressure range of -0.95 to 14 bar, so it's suitable for a broad range of applications
• Blue release ring that's easy to identify for quick dismounting

Applications

• Quarries and shipyards
• Packaging and assembly lines
• Warehouses

How do you detach tubing from this adaptor?

Simply press and hold down on the adaptor's releasing ring to detach a tube. You can then easily remove the hose from the fitting and reuse your tubing once you've retrimmed the end.

Festo Push-in fittings and connectors QS

QS-3/8-12 Specification Sheet

Brochure - Tubing and Fittings
