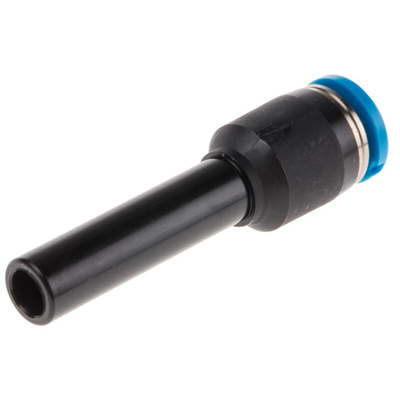

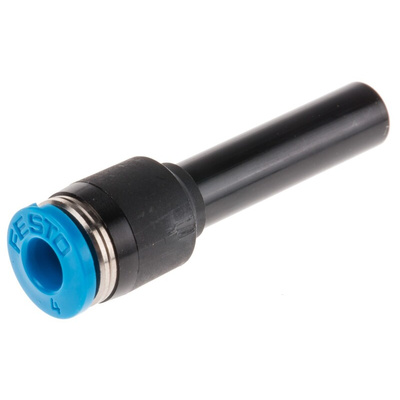

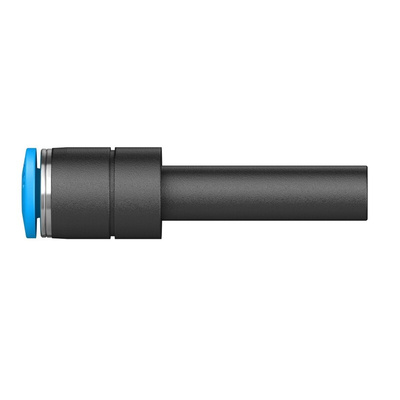

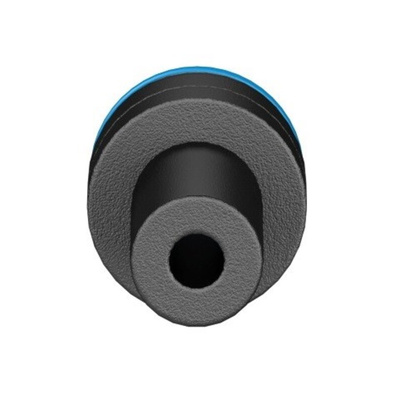

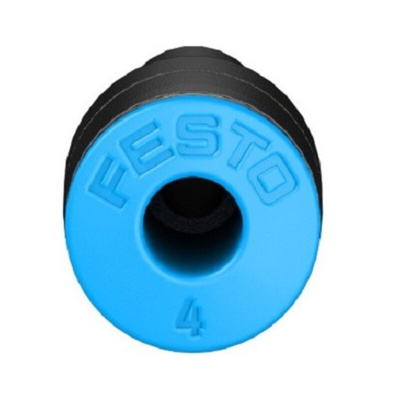

QS-6H-4, Festo QS Series Reducer Nipple, Push In 6 mm to Push In 4 mm, Tube-to-Tube Connection Style, 153041, Переходник

Festo Pneumatic Fitting, Tube-to-Tube Reducer Adaptor, PBT Body Material - QS-6H-4

Decrease the size of your main compressed air pipe run with this reducer adaptor from Festo. It makes it easier to connect a narrower auxiliary hose to a main air hose. Push-in fittings on each end of the unit allow for quick tool-free installation and also make it easy for you to disconnect tubes. Its robust PBT material has high tensile strength, which allows the unit to withstand pressures of up to 14 bar without cracking. For longevity, this material also resists the ageing effects of heat.

• In-line mounting for quick and uncomplicated in-field assembly
• Wide operating temperature range of -10°C to +80°C for compatibility with demanding settings
• Non-corrosive retaining claw for longevity in humid operating conditions
• Release ring allows for easy detachment without damaging air pipes

Applications

• Medical and pharmaceutical industries
• Hoisting machinery
• Robotics
• Food and beverage industry

Can I align this fitting after installation?

Yes, for convenience you can align this fitting once it's been assembled.

Is this fitting able to withstand vibration?

Yes, the adaptor's high-alloy steel retaining claw helps to ensure that vibration and pressure surges are safely absorbed to keep your pneumatic circuit running reliably.

Festo Push-in fittings and connectors QS

QS-6H-4 Specification Sheet

Brochure - Tubing and Fittings
