QS-8-6, Festo QS Series Reducer Nipple, Push In 8 mm to Push In 6 mm, Tube-to-Tube Connection Style, 153038, Переходник

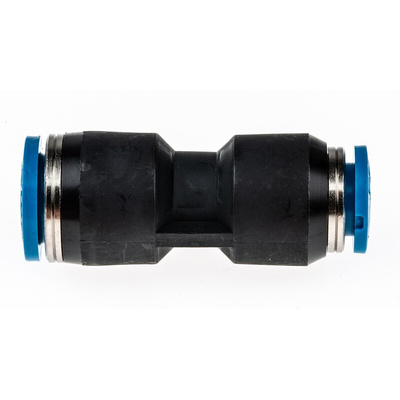

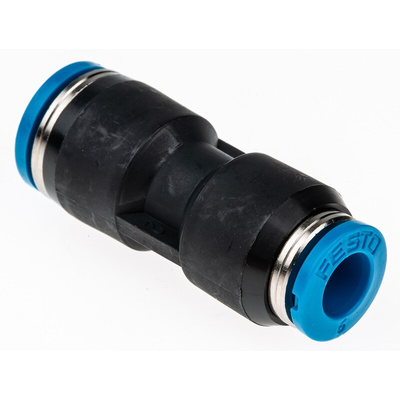

Festo Pneumatic Fitting, Tube-to-Tube Connection Reducer Nipple, Push-In 8mm to Push-In 6mm - QS-8-6

Connect an 8mm tube to a 6mm tube with this reducer nipple from Festo. It's designed for inline mounting to offer flexibility when building your system, and the push-in connectors mean you can connect it quickly with no need for any tools. The housing is made of strong and durable PBT, while POM release rings combine low friction with high stiffness and dimensional stability. Nitrile rubber seals guard against leakage to ensure your system works smoothly.

• Operating temperature range of -10°C to +80°C for safe use in demanding industrial environments
• High-alloy steel retaining claw resists corrosion, ensuring a long service life and minimal maintenance
• Maximum operating pressure of 14 bar offers versatility

Applications

• Engineering workshops
• Mobile equipment
• Conveyor belts

How do I fit a push-in fitting?

To install a hose in a push-in fitting, simply push it into the release ring end until it stops. The internal locking claws will automatically clamp the hose in place. To disconnect the hose, push the release ring back towards the fitting to disengage the claws, then pull the hose out.

Festo Push-in fittings and connectors QS

QS-8-6 Specification Sheet
