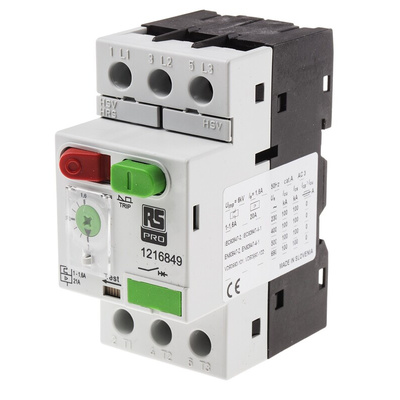

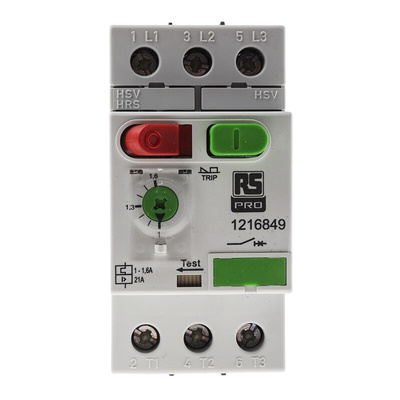

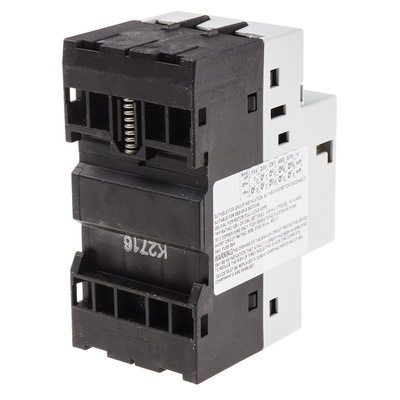

RS PRO 1 → 1.6 A Motor Protection Circuit Breaker, Автоматический выключатель

RS PRO 1 to 1.6 A Motor Protection Circuit Breaker

Need to stop an electric current as a safety measure? This motor-protection circuit breaker is designed for the job and will keep you and your equipment working safely. You'll typically find it in commercial and industrial settings, from manufacturing plants to farmyards and construction sites.
This motor-protection switch has both a thermal and magnetic release, which means it's very quick at limiting overcurrent and reducing the potential damage to your equipment. It comes with an automatic reset facility to save you the task of performing a manual reset after a fault.
For speedy installation, you can mount this switch vertically or horizontally onto a 35 mm DIN rail. It's also Restriction of Hazardous Substances (RoHS) compliant, meaning you can be sure it contains only minimal amounts of any harmful materials.

Features and Benefits

• Circuit-breaker motor-protection component
• Breaking capacity of 100 kA at 230 V
• Current range of 1 to 1.6 A
• Depth of 78.5 mm
• Length of 45 mm
• Width of 89.5 mm
• Dimensions of 45 x 89.5 x 78.5 mm
• For use with motor-protection switches
• Three poles
• Automatic reset method
• MS32 series
• Screw terminal type
• Voltage rating of 690 V
