AHM180PS24, XP Power 180W Power Brick AC/DC Adapter 24V dc Output, 7.5A Output, Блок питания

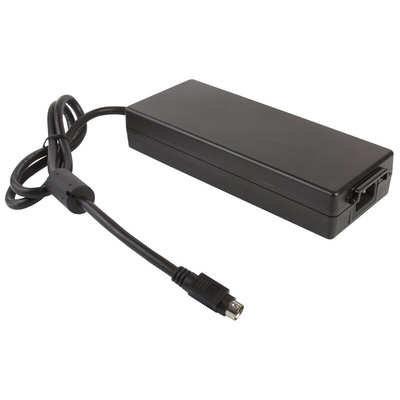

XP Power Desktop Power Supply

The XP Power AHM series plug-in Power unit desktop Power supply has an output voltage rating of 24VDC. It provides 180W of continuous output power in a high-quality, compact enclosure suitable for many general Power applications. It has an input frequency of 47Hz to 63Hz. While the input voltage rating ranging from 80VAC to 264VAC, its maximum output current is 7.50A. It is ideal for many small electrical devices.

Features and Benefits

Energy efficiency level V
Output connection type is DC plug
Load regulation range is 3%
Holdup time is 20ms
Efficiency is 92%

Certifications

CEC2008
EISA2007
IT and medical approvals
China Compulsory Certification (CCC) qualified
Optional Class II versions
Optional white case versions
EN55011/22/FCC Class B conducted
EN55011/22/FCC Class B radiated
EN61000-3-2, Class A
EN61000-3-3
EN61000-4-2
EN61000-4-3, 3 V/m Perf Criteria A
EN61000-4-4, level 3 Perf Criteria A
EN61000-4-5
Installation class 3 Perf Criteria A
EN61000-4-6, 3 Vrms Perf Criteria A
EN61000-4-8, 3 A/m, Perf Criteria A
EN61000-4-11
UL60950-1
IEC60950-1
EN60601-1 (3rd Ed.)
UL60601-1 (2nd Ed.)
IEC60601-1

Datasheet
