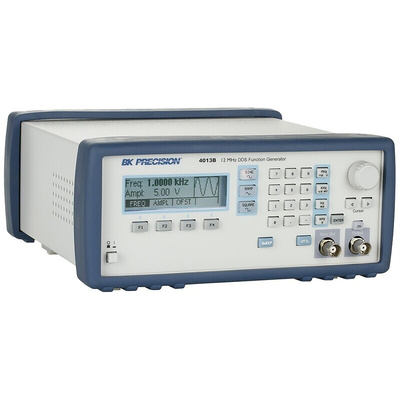

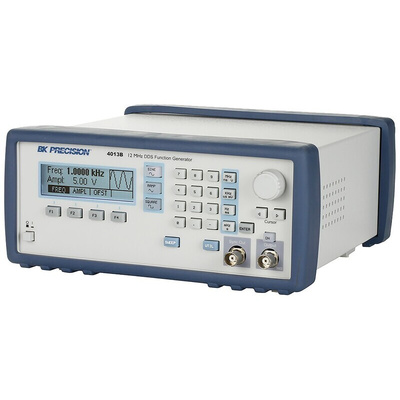

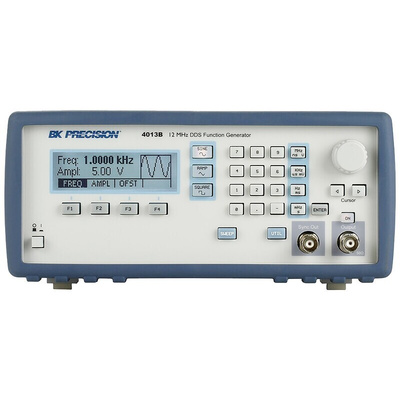

B&K Precision Model 4013B DDS Function Generator

B&K Precision model BK4013B is a versatile sweep function generator using an advanced direct digital synthesis (DDS) design. The instrument generates sine, square and triangle waveforms with high signal precision and stability. It provides variable output voltages from 0 to 10 Vpp into 50 ohms or up to 20 Vpp into open circuit. A continuously variable DC offset allows the output to be injected directly into circuits at the correct bias level. An auxiliary TTL output at the generator’s frequency is available to synchronise external devices. Up to 9 front panel settings can be saved to memory storage.

Features and Benefits

Sine, square, and triangle/ramp waveform generation
Linear and logarithmic sweep
Adjustable duty cycle
Adjustable DC offset
Store and recall up to 9 instrument settings
Output On/Off button
Overvoltage, overcurrent and short circuit protection on main output

Areas of Application

Education
Other applications that need basic DDS function generators with sweep capability

Note

You may also be interested in model BK4007B ( 121-7542 ), 0.1 Hz - 7 MHz

Supplied with

Manual on CD, power cord, certificate of calibration
