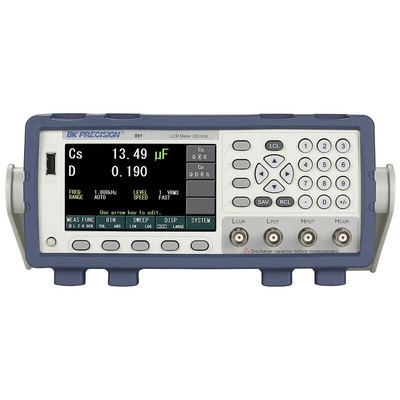

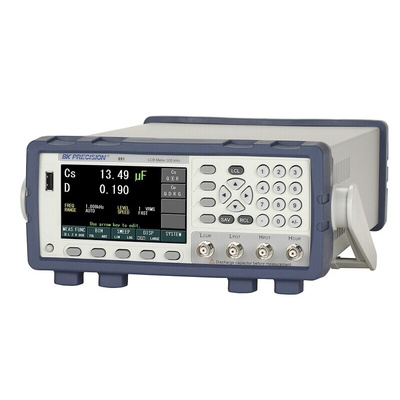

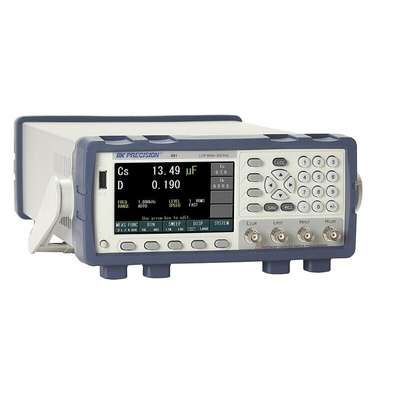

B&K Precision Model 891 Bench LCR Meter

B&K Precision model BK891 is capable of measuring inductors, capacitors and resistors at DC or from 20 Hz to 300 kHz. The instrument's compact 2U half-rack form factor is suitable for the bench or rack mount installation. A large 4.3 in colour display, with all important parameters and measurements visible on one screen, makes this meter easy-to-operate.

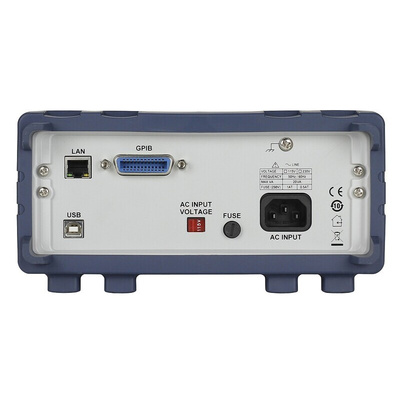

The instrument's convenient bin sorting function and frequency sweep function enable quick sorting and characterisation of components. Standard USB, GPIB and LAN interfaces enhance productivity by providing remote control capabilities to perform daily operations in production, quality control and laboratory environments. Also includes user manual, power cord, Kelvin clips (TL 889A), certificate of calibration and test report.

Features and Benefits:

• Measurement parameters L, C, R, Z, G, B, Y, D, Q, θ, DCR
• 0.05% best impedance accuracy
• Fully adjustable test frequency from 20 Hz to 300 kHz with 4-digit resolution
• 0.5 Vrms and 1 Vrms selectable test levels
• Adjustable measurement speed for fast readout or better accuracy
• 300-point linear and logarithmic sweep function
• Bin sorting function (9 primary, one secondary and one out-of-spec bin)
• Save/recall up to 100 setups (10 internal) including 1000 measurements and screenshots

Supplied with

User manual, power cord, Kelvin clips (TL 889A), certificate of calibration & test report
