RS PRO Plug In Power Relay, 24V dc Coil, 5A Switching Current, 4PDT, Реле

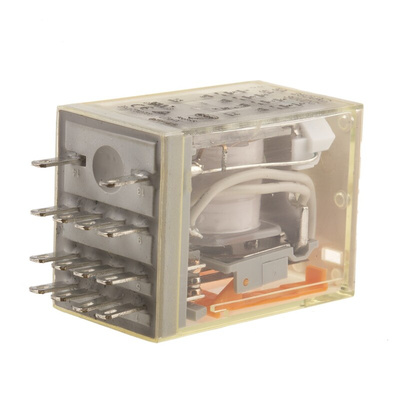

RS PRO Non-Latching Relay, 4PDT, Plug-In, 24 V DC Coil, 5 A Switching Current

This non-latching relay from RS PRO controls the current in your circuit system. When plugged into your electrical supply, the relay is in the 'normally open' (NO) position, ready to be powered at the touch of a button. The magnetic mechanism switches to the 'normally closed' (NC) position when the current is removed, keeping your circuits safe and secure.
This relay has an LED indicator, so you can tell whether the current is on or off at a glance. The transparent covering on either side acts as a see-through window to let you check the configuration without opening the seal.
This long-lasting product has a guaranteed working life of 100,000 electrical cycles and 1,000,000 mechanical cycles. It conforms to the Restriction of Hazardous Substances Directive (RoHS), ensuring it contains only minimal amounts of any materials that could be harmful to your health.

Features and Benefits

• General-purpose application
• Coil power of 150 W
• Coil voltage of 24 V DC
• Four pole, double throw contact configuration
• Silver alloy contact material
• Dimensions of 28 (length) x 36 (height) x 21.5 mm (depth)
• Isolation coil to contact of 2 kV AC
• Life of 100000 (electrical) cycles, 10000000 (mechanical) cycles
• Maximum switching power (AC) of 250 V, 1.2 VA
• Maximum switching power (DC) of 30 V, 900 mW
• Operating temperature range of -55°C to +70°C
• Plug-in mounting type
• Four poles
• Non-latching relay switching classification
• LED indicator special features
• Meets European Conformity (CE), Care Quality Commission (CQC), Underwriters Laboratories (cULus) and RoHS safety standards
• Switching current of 5 A
• Plug-in terminal type

Datasheet
