RS PRO Plug In Power Relay, 240V ac Coil, 6A Switching Current, 4PDT, Реле

RS PRO Non-Latching Relay, 4PDT, Plug-In, 240 V AC Coil, 6 A Switching Current

If you need to regulate the flow of electric current through your circuitry, use this RS PRO non-latching relay. It opens and closes the circuit it's plugged into and contains a test button to check whether it's operational.

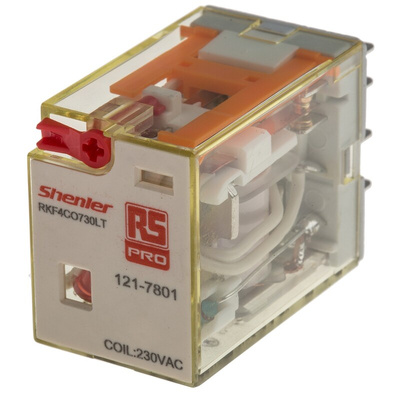

The see-through housing lets you inspect the device's interior without opening it up, making maintenance and safety checks quicker and easier. You can also tell which current is live using the colour-coded buttons – red for alternating current (AC) and blue for direct current (DC). The test button is lockable, so you won't trigger it accidentally and interrupt your working processes.
This relay features plug-in mounting for simple installation. The contacts are gold-plated to protect them from rust, ensuring a long product life.

Features and Benefits

• General-purpose application
• Coil power of 180 W
• Coil voltage of 240 V AC
• Four pole, double throw (4PDT) contact configuration
• Silver alloy contact material
• Dimensions of 28 (length) x 36 (height) x 21.5 mm (depth)
• Isolation coil to contact of 2 kV AC
• Life of 100000 (electrical) cycles, 10000000 (mechanical) cycles
• Maximum switching power (AC) of 250 V, 1.2 VA
• Maximum switching power (DC) of 30 V, 900 mW
• Operating temperature range of -55°C to +70°C

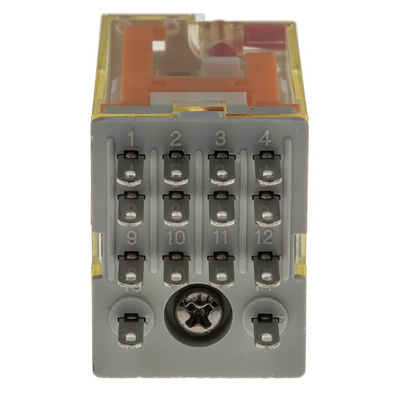

• Plug-in mounting type
• Four poles
• Non-latching relay switching classification
• LED indicator
• Meets European Conformity (CE), Care Quality Commission (CQC), Underwriters Laboratories (cULus), and Restriction of Hazardous Substances (RoHS) standards
• Switching current of 6 A
• Plug-in terminal type
