RS PRO Plug In Power Relay, 240V ac Coil, 16A Switching Current, SPDT, Реле

RS PRO Non-Latching Relay, SPDT, Plug-In, 240 V AC Coil, 16 A Switching Current

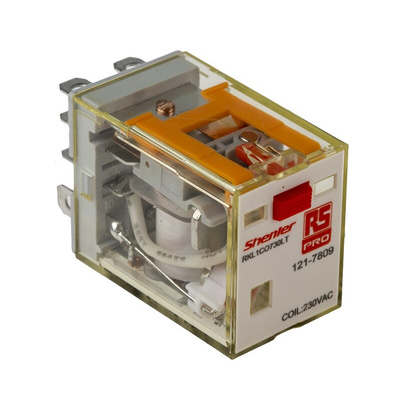

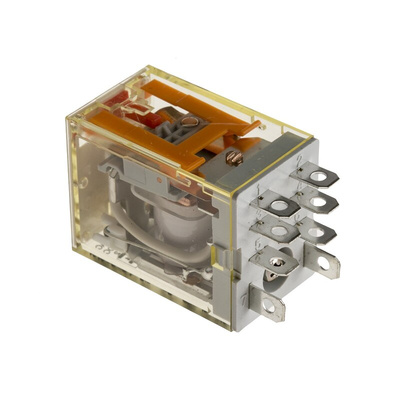

This RS PRO non-latching relay plugs into your circuit so you can switch the current on and off effectively. Its test button gives you an easy way to check if the current is active and can be locked to prevent you triggering it accidentally.

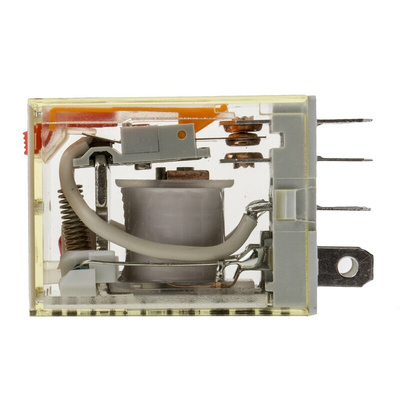

The transparent housing material allows you to check the device's configuration without breaking the seal. The colour-coded buttons show you which current is live, with red for alternating current (AC) and blue for direct current (DC).The gold-plated contacts help resist corrosion, ensuring your device connections will remain secure.
Thanks to its compact size, this unit is ideal for use with heating, ventilating and air conditioning (HVAC) systems, but it's versatile enough for many other electrical applications. The relay's operating temperature range of -25°C to +55°C means it can withstand harsh industrial environments.

Features and Benefits

• General-purpose application
• Coil power of 480 W
• Coil voltage of 240 V AC
• Single pole, double throw (SPDT) contact configuration
• Silver alloy contact material
• Dimensions of 28 (length) x 36 (height) x 21.5 mm (depth)
• Isolation coil to contact of 2 kV AC
• Life of 100000 (electrical) cycles, 10000000 (mechanical) cycles
• Operating temperature range of -25°C to +55°C
• Maximum switching power (AC) of 250 V, 1.2 VA
• Maximum switching power (DC) of 30 V, 900 mW
• Plug-in mounting type
• Single pole
• Non-latching relay switching classification
• LED indicator
• Meets European Conformity (CE), Care Quality Commission (CQC), Underwriters Laboratories (cULus) and Restriction of Hazardous Substances (RoHS) standards
• Switching current of 16 A
• Plug-in terminal type
