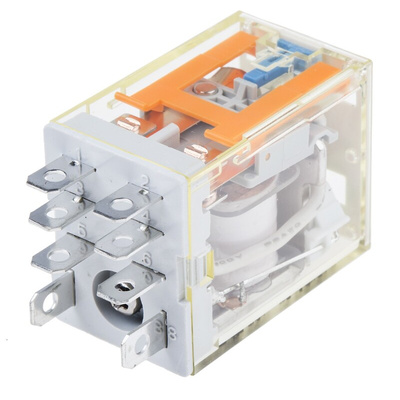

RS PRO Plug In Power Relay, 12V dc Coil, 10A Switching Current, DPDT, Реле

RS PRO Non-Latching Relay, DPDT, Plug-In, 12 V DC Coil, 10 A Switching Current

Need a reliable mechanism for switching your electrical systems from alternating current to direct current? Use this RS PRO non-latching relay. Simply plug it in for a quick installation. The LED indicator then makes it easy to see if the current is on or off.
This relay is in the 'normally closed' (NC) position when disconnected from a power source. This prevents short-circuiting and increases safety. When current is applied, the magnetic mechanism in the relay switches to 'normally open' (NO), activating your circuitry.
Thanks to its see-through housing, you can inspect the relay's internal configuration without having to disassemble it. This simplifies maintenance and safety checks. This product conforms to the Restriction of Hazardous Substances (RoHS), so it contains no more than trace amounts of any potentially harmful materials.

Features and Benefits

• General-purpose application
• Coil power of 300 W
• Coil voltage of 12 V DC
• Double pole, double throw (DPDT) contact configuration
• Silver alloy contact material
• Dimensions of 28 (length) x 36 (height) x 21.5 mm (depth)
• Isolation coil to contact of 2 kV AC
• Life of 100000 (electrical) cycles, 10000000 (mechanical) cycles
• Operating temperature range of -25°C to +55 °C
• Maximum switching power (AC) of 250 V, 1.2 VA
• Maximum switching power (DC) of 30 V, 900 mW
• Plug-in mounting type
• Two poles
• Non-latching relay switching classification
• LED indicator
• Meets European Conformity (CE), Care Quality Commission (CQC), Underwriters Laboratories (cULus) and RoHS standards
• Switching current of 10 A
• Plug-in terminal type

RS PRO Datasheet
