RS PRO Plug In Power Relay, 240V ac Coil, 10A Switching Current, DPDT, Реле

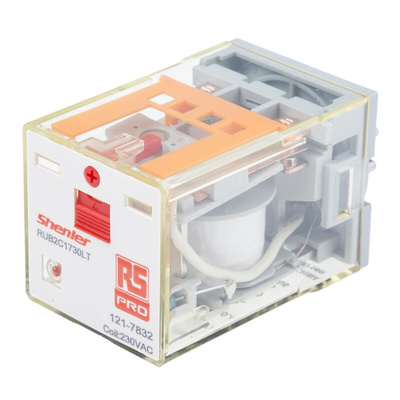

RS PRO Non-Latching Relay, DPDT, Plug-in, 240 V AC, 10 A Switching Current

Plug this RS PRO non-latching relay into your circuit to switch the current on and off. When a live electrical current is applied, the relay changes from the 'normally closed' (NC) position to 'normally open' (NO), activating your circuitry.
You can inspect the relay set-up from outside thanks to the see-through housing material. The test button colour allows you to identify which type of current is going through it, with a red button for alternating current (AC) and a blue one for direct current (DC).
This product meets Care Quality Commission (CQC), Underwriters Laboratories (UL) and Conformité Européenne (CE) standards, ensuring it's safe to use. It also complies with the Restriction of Hazardous Substances (RoHS), so it contains no more than trace amounts of materials that could be detrimental to your health.

Features and Benefits

• General purpose application
• Coil power of 300 W
• Coil voltage of 240 V AC
• Double pole, double throw (DPDT) contact configuration
• Silver alloy contact material
• Dimensions of 36 (length) x 53 (height) x 36 mm (depth)
• Isolation coil to contact of 2.5 kV AC
• Life of 100000 (electrical) cycles, 10000000 (mechanical) cycles
• Maximum switching power (AC) of 250 V, 2.7 VA
• Maximum switching power (DC) of 30 V, 1.5 W
• Operating temperature range of -10°C to +55°C minimum operating temperature
• Plug-in mounting type
• Two poles
• Non-latching relay switching classification
• LED indicator
• Meets CE, CQC, cULus, RoHS standards
• Switching current of 10 A
• Plug-in terminal type

Datasheet
