40PC250G2A, Honeywell Gauge Pressure Sensor, 250psi Operating Max, Through-Hole Mount, 6-Pin, 500psi Overload Max, DIP, Датчик давления

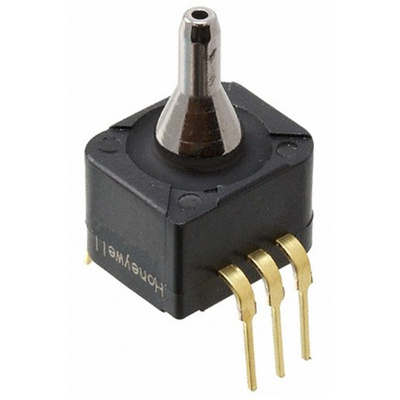

Honeywell Through-Hole Gauge Pressure Sensor, 250psi, 6-Pin DIP - 40PC Series - 40PC250G2A

This Honeywell pressure sensor helps measure the pressure of the gas or liquid in your pressurised systems. As an integrated circuit (IC), its chip sits on a small semiconductor to detect and measure differences in atmospheric pressure. The sensor has a wide operating temperature range of -45°C to +125°C, making it suitable for use in harsh industrial environments. You can connect the device to your printed circuit board (PCB) via through-hole mounting and solder it in place for extra security.

Features & Benefits

• Compact dimensions of 13.2 (length) x 11.2 (width) x 19.8mm (height) means it takes up minimal space on your PCB
• Fully signal-conditioned to convert pressure data into an accurate measurement
• Sensitive silicon piezo-resistive semiconductor responds quickly to changes in applied stress
• Bonded with a high-strength, chemical-resistant, epoxy-based adhesive for durability

Applications

• Barometers
• Printers
• Computer cooling systems

What’s the accuracy level of this pressure sensor?

The accuracy level of this pressure sensor is 0.2%, so you can rest assured it will provide you with precise readings.

What safety precautions should I take when handling this device?

As the sensor has high electrostatic sensitivity, you should only handle it in a static-free work area to avoid damaging it.

Pressure Sensors, Honeywell

40PC Series Pressure Sensors
