GMXa1602PVT20000U1113BEN, ProMinent Diaphragm Electric Operated Positive Displacement Pump, 2.3L/h, 16 bar, 100 → 230 V, Насос

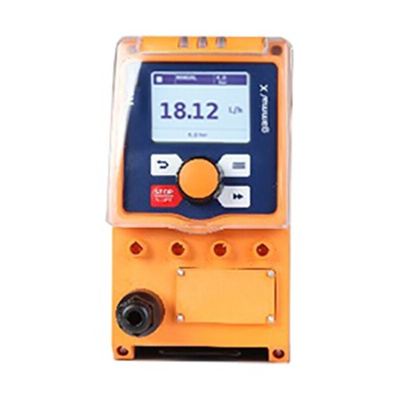

ProMinent Solenoid Diaphragm Dosing Pump

The ProMinent Gamma/X series solenoid diaphragm dosing pump has a maximum flow rate of 2.3L/ hour and 16bar working pressure. It is suitable for all your liquid media metering needs. Integrated solenoid control protects from overloading and constantly measures backpressure. The removal of a pressure sensor and minimum contact between the feed chemical, sealing surfaces and components adds to the safety. Accuracy and reliability are improved by gas detection in the measurement head and automatic adjustment to maintain the correct dosing levels.

Features and Benefits

Body material is Polyvinylidene fluoride

The supply voltage is between 100V to 230V
Maximum fluid temperature is 20°C
Input power is 24W/30W
Integrated 7-day timer
Integrated pressure measurement
Capacity adjustments easily made in litre/ hour
Control via profinet, profibus, and CANbus
Virtually continuous metering
Auto adjustment to maintain correct dosing
Sensor less pressure measurement
Diaphragm rupture warning
Automatic bleeding

Applications

Laboratory chemical monitoring
Cooling water circuits
Metering disinfectants
Paper industry defoamer
General water treatments
Metering for PH correction dosing
Metering of chemicals and disinfectants

Certifications

IP65 rated
