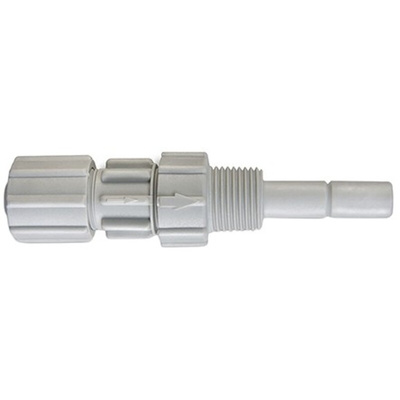

1024710, ProMinent Metering Pump Injection Valve for use with PE/PTFE Pipes

1218604
Номер производителя: 1024710Производитель: ProMinent
Цена за шт.
10881.50 руб. *

Срок поставки: 3-5 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Prominent Dosing Pump Injection Valve

Dosing Pump injection valves connect the metering line into the pipe at the required injection point. They help create a defined back pressure to aid accurate dosing and protect against backflow. Prominent PVT injection valves have a Polyvinylidene fluoride (PVDF) housing and Polytetrafluoroethylene (PTFE seals). The non return valve is spring loaded. These dosing pump injection valves can be fitted in any position and have a priming pressure of approximately 0.5 bar.

Features and Benefits

R1/2 connection for E/PTFE pipe
Max operating pressure of 16 bar (@25°C)
119mm Length
Nozzle outside diameter of 8mm
Nozzle inside diameter of 5mm

Metering/Dosing Pumps

For use in the chemical, pharmaceutical and food/drinks industries. All have IP65 glass fibre reinforced housings, solenoid drive mechanisms and LCD displays. A comprehensive user manual is supplied with each model.

Техническая спецификация
pdfDatasheet
Для использования с:
PE/PTFE Pipes
