790362, ProMinent Pump Accessory, Suction Lance for use with Beta & Gamma Meter Pumps

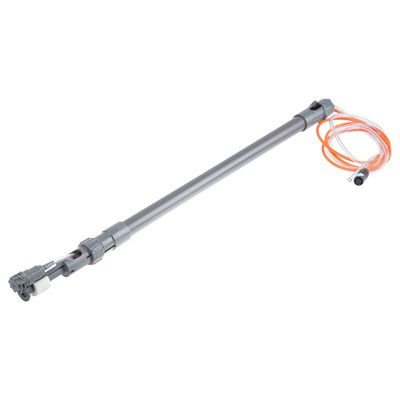

Prominent Suction Lance

Suction lances are installed inside the chemical tank at the low end of the suction hose. These variable suction lance assemblies are suitable for 100 L to 500 L chemical tanks and use a 6 x 4 mm suction hose. They come fitted with a two stage level switch indicating low level and empty tank and a foot valve preventing dirt ingress into the chemical line and pump.

Features and Benefits

Adjustable length
Suitable for use with Beta, Gamma and Delta metering pumps
655 – 1060mm length support pipe
Polypropylene (PP) retaining tube and foot valve
Ethylene propylene diene monomer (EPDM) seals
Polyethylene (PE) hose

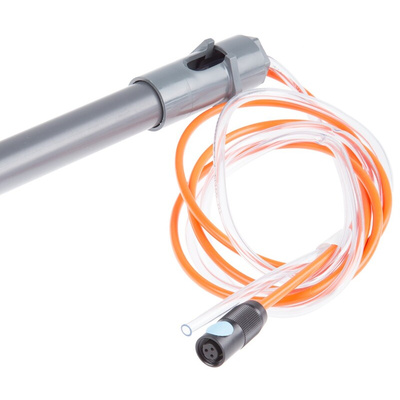

2 stage level switch

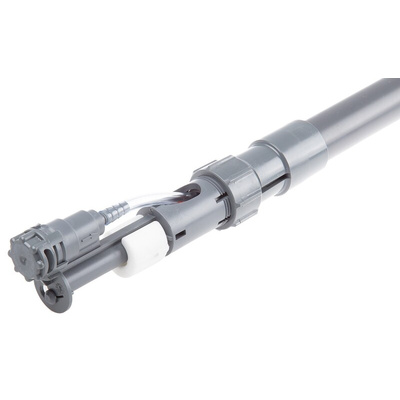

Foot valve

Metering/Dosing Pumps

For use in the chemical, pharmaceutical and food/drinks industries. All have IP65 glass fibre reinforced housings, solenoid drive mechanisms and LCD displays. A comprehensive user manual is supplied with each model.
