Semikron SKYPER 12 press-fit C 600A, General Purpose, 15 A, 15V, Драйвер

1220387
Номер производителя: SKYPER 12 press-fit C 600AПроизводитель: Semikron
Цена за шт.
114222.00 руб. (С НДС) *
Количество 2+ 5+ 10+
Цена 108054.00 руб. 99033.00 руб. 88635.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

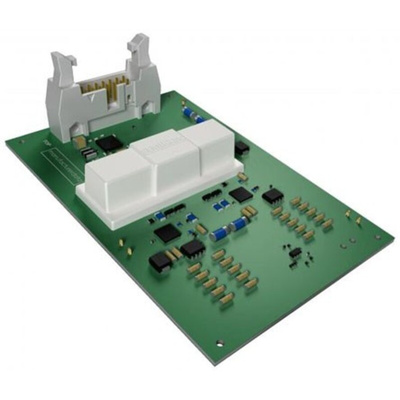

SKYPER® 12 Press-fit IGBT Driver Module

The Semikron SKYPER® 12 press-fit modules are IGBT drivers for SEMIX Press-fit and Econodual Press-fit IGBT modules. The half-bridge driver boards can be mounted directly onto 17mm press-fit modules. With 30% fewer components than other plug-and-play solutions, these drivers achieve an MTBF rate of over 5 million hours at full load and the 1W per channel outputs can drive IGBTs with ratings of up to 600A and 1700V.
For suitable IGBT modules see 122-0385 to 122-0387

• Fits to 1200V & 1700V IGBT modules
• Drives Econodual and SEMIX press-fit modules
• Two 1W output channels for half-bridge applications
• Up to 8 μC gate charge output capacity
• Qualified safe operating area ensures best possible performance
• High reliability with MTBF rate > 5 Million hours
• Short-circuit protected over the complete operating temperature range
• Dynamic Short Circuit Protection (DSCP) by VCE monitoring and direct Soft-Off
• Robust rectangle signal transmission
• High noise immunity with short pulse suppression and robust interface
• Insulated over-temperature trip on secondary side
• Primary and secondary under-voltage protection (UVP)
• Integrated isolated power supply for the secondary side

MOSFET & IGBT Drivers, Semikron

Техническая спецификация
pdfSKYPER 12 press-fit C 600A
pdfDraft Data Sheet SKYPER 12 press-fit Driver Module
pdfSemikron Driver Selection Guide
pdfESD Control Selection Guide V1
Выходной ток:
15 A
Напряжение питания:
15В
Тип логики:
CMOS
Тип монтажа:
Крепление на печатной плате
