0850-0570, BARTH lococube mini-PLC Series PLC I/O Module for Use with STG-570, 7 → 32 V dc Supply, Digital Output, 5-Input,, Логический модуль

BARTH Logic Module

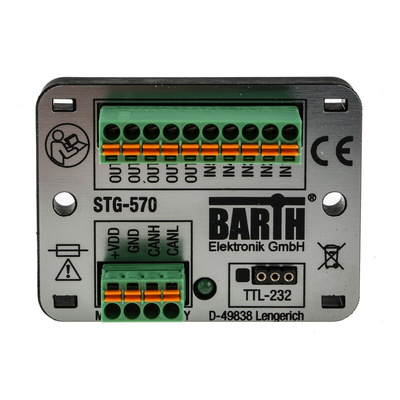

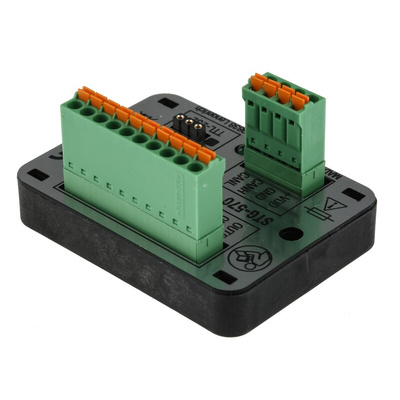

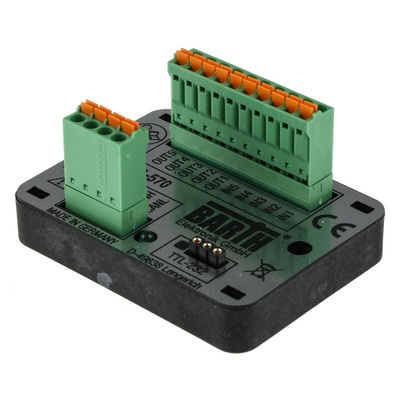

The BARTH STG-570 CAN panel mount logic module is a highly integrated programmable logic controller. It provides an outstanding graphical programming capability at the lowest current consumption and small form factor. This logic module has low power consumption and can operate over a wide range of voltages, which makes it suitable for 12V and 24V battery-powered systems. The CAN bus allows the user to connect to a variety of network components to the Mini-PLC. It has 8 analogues inputs which can vary from 0VDC to 30VDC and 2 digital inputs up to 10Khz. This logic module has 8 power outputs up to 1.5A and 1PWM power output. This logic module can be easily programmed using miCon-L software, which does not require a difficult programming language.

Features and Benefits

Reliable solid-state output
Programmable status LED
Only 1 CAN Interface
TTL-232/USB connection to PC
Intuitive graphical programming capability
Wide operating voltage ranges between 7VDC and 32VDC
Ultra-flat housing
Height is 10mm
Vibration resistant and rugged sealing
Very low current consumption
Fail-safe oscillator

Applications

Industrial automation
Building automation
Automotive technology
Maritime technology
