BK9805, BK Precision Digital Bench Power Supply, 48A, 1-Output, 1500 (Maximum)VA - UKAS Calibrated, Блок питания

B&K Precision Model 9805 Programmable AC Power Source

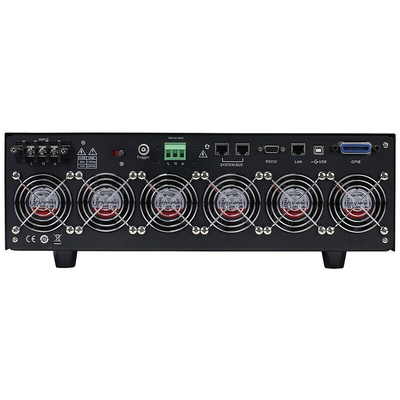

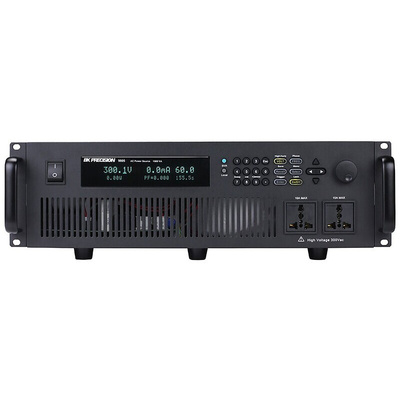

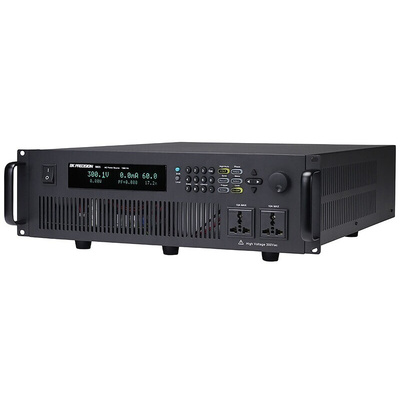

B&K Precision model BK9805 is both a programmable AC source and a measurement tool. It delives a maximum 1500 VA through the universal line output terminals on the front panel and the output connector to the rear of the instrument. The output can be varied from 0 to 300 V with 0.1 V programming resolution. The output frequency can also be adjusted from 45 Hz to 500 Hz with start and stop phase angle from 0 to 360 degrees. The bright VFD display shows Vrms, Irms, Ipeak, frequency, power factor (PF), apparent power, true power and elapsed output time.
The AC source provides a power line disturbance (PLD) simulator, list mode and sweep mode for simulation of common power grid faults and disturbances. A built-in dimmer function is also available for testing motors and LEDs.

Features and Benefits

0 to 300 V low distortion AC power source
Output frequency adjustable from 45 Hz – 500 Hz
Select 150 V / 300 V autoranging or 300 V range operation for continuous sweep from 0 - 300 V
Displays Vrms, Irms, Ipeak, frequency, PF, apparent power, true power and elapsed output time
Adjustable phase angle control
Built-in PLD and dimmer simulation
Voltage and frequency sweep mode
Downloadable LabVIEW driver and soft panel software for remote control
Standard USB (USBTMC-compliant), RS232, LAN and GPIB interfaces
Pre-compliance testing for voltage dips and frequency simulation according to IEC61000-4-11 / 4-14 / 4-28

Areas of Application

Evaluating transformers, TRIACs, SCRs and passive components
Production, R&D, service and pre-compliance testing

Supplied with

Unterminated power cord with input connector, rackmount ears & handles, instruction manual, test report & certificate of calibration
