BK1673, BK Precision Bench Power Supply, , 400W, 3 Output , , 5 V, 2 x 0 → 32 V, 3 A, 2 x 0 → 6 A With RS, Блок питания

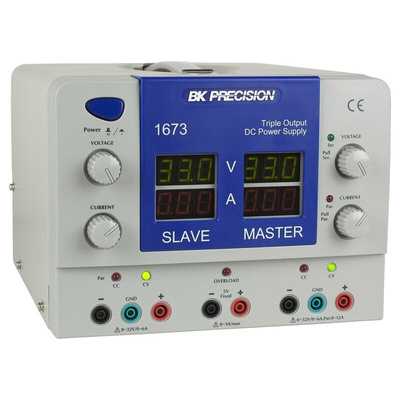

B&K Precision Model 1673 Quad Display Triple Output Regulated DC Power Supply

B&K Precision model 1673 is a quad display triple output regulated DC power supply that provides one fixed output (5 V/3 A) and two
variable outputs (0-32 V/ 0-6 A).The variable outputs can work independently or in series tracking or parallel mode.

Features and Benefits

Intuitive - easy-to-operate voltage and current adjustment knobs
Quad display - bright, quad 3-digit LED display
Independent control of Voltage and Current controls for variable output
CV/CC operation
Separate 3 digit displays for voltage (Green) and current (Red) for both variable outputs
LED indication for CV (Green)/ CC (Red) mode
Overload indication LED for Fixed output
Series tracking and parallel mode operation for Triple output unit
Sheathed safety babana input jacks accept sheathed or shrouded banana plugs

Areas of Application

Electronic test, production and service
Laboratories - especially where multiple DC power supplies are required and bench space is at a premium

Note

You may also be interested in B&K Precision Model 1672, 0-32 V/ 0-3 A ( 878-2069 ).

Supplied with

Power cord, instruction manual, two pairs of test leads

B&K Precision

Datasheet

Instruction Manual
