BK1739, BK Precision Digital Bench Power Supply, 0 → 30V, 0 → 999.9mA, 1-Output, ≤70W - UKAS Calibrated, Блок питания

B&K Precision Model 1739 Low Current High Resolution DC Power Supply

B&K Precision model 1739 low current high resolution DC power supply has excellent load regulation and low noise characteristics. Two 4-digit LED displays continuously monitor the output voltage and current. The power supplies can be operated locally from the front panel or remotely through the RS-232 interface. The mechanical configuration conserves bench space and allows for easy portability.
Using a MOSFET circuit design and high quality components with very low temperature coefficients, the power supply is extremely stable and capable of outputting current as low as 1 mA with a 100 μA settable resolution. This power supply was designed for electrical and electronics applications requiring precise levels of low current, including 4-20 mA current loop testing, calibration or basic IC testing.

Features and Benefits

Low 1 mA settable current limit with 0.1 mA resolution
Output on/off button
Low ripple and noise
Excellent regulation
Constant voltage (CV) and constant current (CC) operation

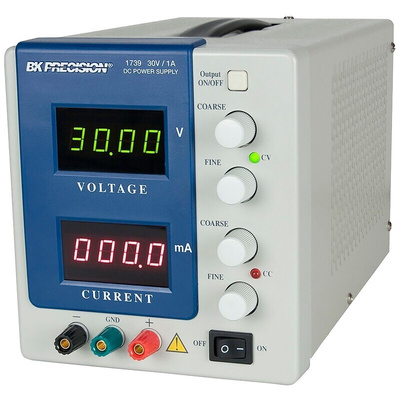

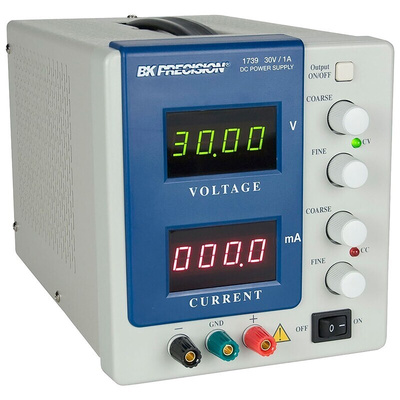

Two large, easy-to-read LED displays provide good visibility in bright or low light
LED indication for CV and CC modes
Saved programmed values upon power-up

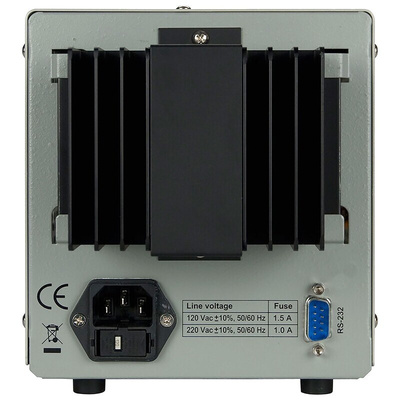

RS-232 interface
Pre-regulator for limiting internal dissipation for higher reliability
Isolated output
Overload protection
Reverse polarity protection
Power-on self test
Modern functional configuration conserves bench space and aids portability

Areas of Application

4-20 mA loop testing
Calibration
IC testing
Service shops
Engineering laboratories
Production testing
School laboratories
Home use by hobbyists

Supplied with

Power cord, instruction manual, RS232 cable
