BK Precision BK1900B Bench Power Supply With UKAS Calibration, 1 Output 1 → 16V 0 → 60A, Блок питания

1222059
Номер производителя: BK1900BПроизводитель: BK Precision
Цена за шт.
106925.00 руб. *

Срок поставки: 3-5 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

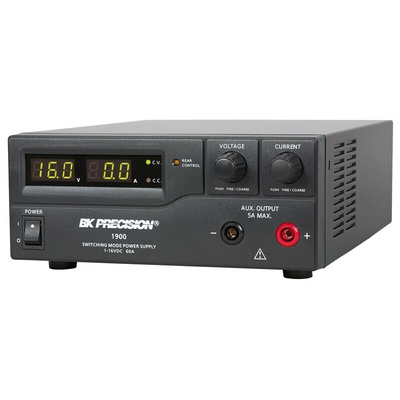

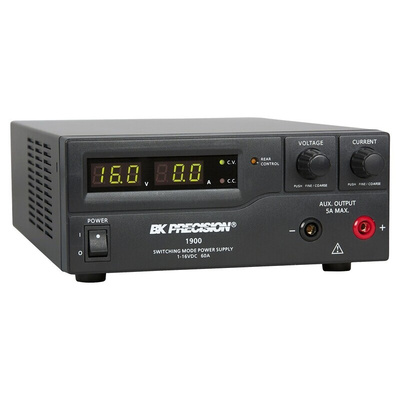

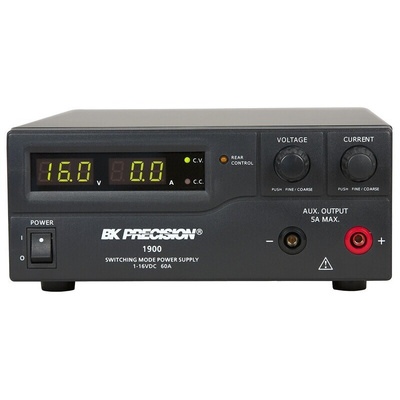

B&K Precision Model 1900 High Power Switching DC Power Supply

Models 1900B, 1901B, and 1902B are laboratory grade switching mode DC power supply with high current output in a small form factor and lightweight package. The supplies provide various configurations of high output voltage or high output current and make setting voltage and current levels fast and precise through its dual action, coarse/fine rotary encoder control. In addition to constant voltage (CV) and constant current (CC) modes, the high efficiency DC power supplies offer a unique solution with its preset and remote control modes. Save up to three different presets of voltage and current values for quick recall. The remote control function allows the output power, voltage, and current to be adjusted without touching the front panel of the power supply. A remote sensing terminal is also available for use to compensate for long output line losses. These features make the 1900B Series suitable for a wide range of applications including production testing, telecommunications, R&D, service, and university labs.

Features and Benefits

Automatic CV/CC crossover operation
Lightweight and compact
Rotary encoder control for precise voltage and current setting
3 user-defined voltage and current presets
USB interface with PC software for remote control and external timed programming
Analog remote control function
Overvoltage, overtemperature, and overload protection
Remote sense (model 1900B only)

Areas of Application

Production testing
Telecommunications
R&D
Service
University laboratories

Note

You may also be interested in models BK1901 ( 121-7540 ) 1-32 V, 0-30 A and BK1902 ( 121-7541 ) 1-60 V, 0-15 A

Supplied with

Power cord, instruction manual, remote control connector

B&K Precision

Техническая спецификация
pdfDatasheet
pdfInstruction Manual
Выходной ток:
0 → 60A
Калибровка:
UKAS
Количество выходов:
1
Количество дисплеев:
2
Максимальная температура:
+40°C
Минимальная температура:
0°C
Напряжение выходное:
1 → 16В
Напряжение питания:
230В
Тип:
Цифровой
