BK1902B, BK Precision Digital Bench Power Supply, 1 → 60V, 0 → 15A, 1-Output - UKAS Calibrated, Блок питания

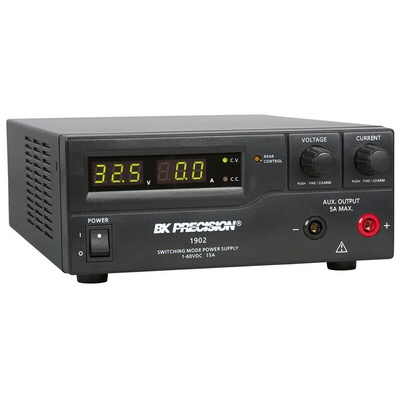

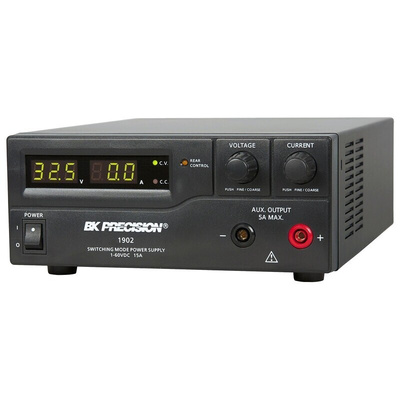

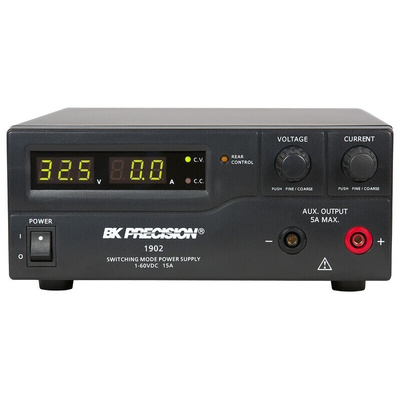

B&K Precision Model 1902 High Power Switching DC Power Supply

Model 1902B is a laboratory grade switching mode DC power supply with high current output in a small form factor and lightweight package. The supplies provide various configurations of high output voltage or high output current and make setting voltage and current levels fast and precise through its dual action, coarse/fine rotary encoder control. In addition to constant voltage (CV) and constant current (CC) modes, the high efficiency DC power supplies offer a unique solution with its preset and remote control modes. Save up to three different presets of voltage and current values for quick recall. The remote control function allows the output power, voltage, and current to be adjusted without touching the front panel of the power supply. A remote sensing terminal is also available for use to compensate for long output line losses. These features make the 1900B Series suitable for a wide range of applications including production testing, telecommunications, R&D, service, and university labs.

Features and Benefits

Automatic CV/CC crossover operation
Lightweight and compact
Rotary encoder control for precise voltage and current setting
3 user-defined voltage and current presets
Remote control function
Remote sensing terminal
Overvoltage, overtemperature and overload protection

Areas of Application

Production testing
Telecommunications
R&D
Service
University laboratories

Note

You may also be interested in models BK1900 ( 121-7539 ) 1-16 V, 0-60 A and BK1901 ( 121-7540 ) 1-32 V, 0-30 A

Supplied with

Power cord, instruction manual, remote control connector

B&K Precision

Datasheet

Instruction Manual
