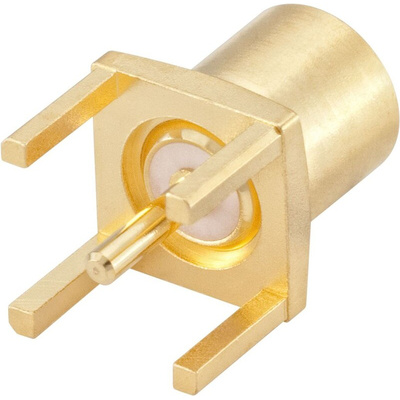

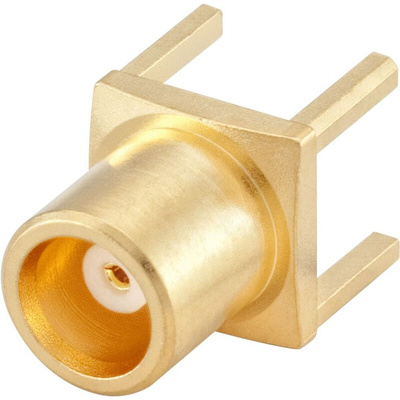

182261, Rosenberger, jack PCB Mount MCX Connector, 50Ω, Solder Termination, Straight Body, Разъем

Rosenberger MCX 50Ω PCB Mount Jacks

From Rosenberger, a series of superior quality 50 Ω MCX PCB mount jacks. This range of MCX jacks have gold plated beryllium copper centre contacts and a PTFE dielectric. These micro- miniature connectors feature a secure snap together mechanism. Compact in design, 30% smaller than conventional SMB connectors making them ideal for space limited applications.

Features and Benefits

Interface according to IEC60169-36 and CECC22220
Frequency range DC to 6 GHz
Secure snap-on coupling
Compact size, 30% smaller than SMB

Applications

Instrumentation
GPS
PC/LAN
Base stations
Wireless/ networks antenna
Telecommunications
Automotive

Rosenberger MCX Range

MCX (50 Ohm) straight jack PCB drawing
