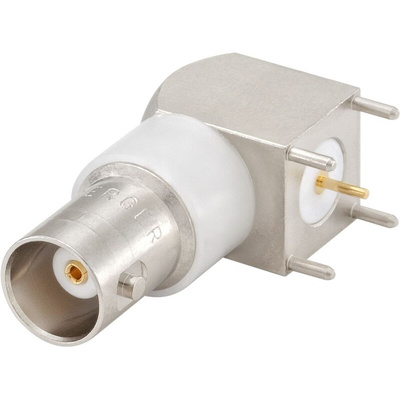

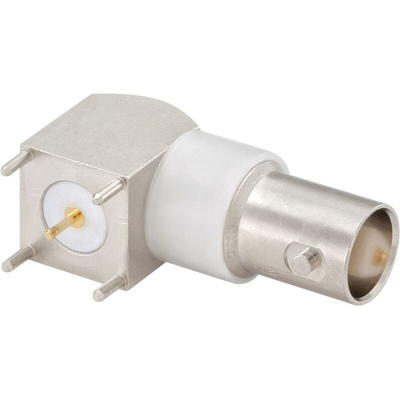

103623, Rosenberger, jack PCB Mount BNC Connector, 50Ω, Through Hole Termination, Right Angle Body, Разъем

Rosenberger BNC 50Ω PCB Mount Jacks

From Rosenberger, a series of superior quality 50 Ω PCB mount jacks. This range of BNC jacks have gold plated centre contacts and nickel plated brass bodies. These female BNC connectors feature a bayonet coupling mechanism requiring only a quarter turn to connect and disconnect. The easy to use coupling make BNC connectors one of the most popular general purpose connectors around.

Features and Benefits

Interface according to IEC 61169-8, MIL-PRF-39012 and CECC 22120
Frequency range DC to 10 GHz
Bayonet coupling

Applications

Antennas
Telecom
Automotive
Medical Equipment
Base Stations
Cable Modems
Instrumentation

Rosenberger BNC Range 50Ω

BNC 50 Ohm Right Angle Jack PCB drawing
