TDR-960-48, MEAN WELL TDR Switch Mode DIN Rail Power Supply, 340 → 550V ac ac Input, 48V dc dc Output, 20A Output, 960W, Блок питания

Mean Well Phase Industrial DIN Rail with PFC Function – TDR Series

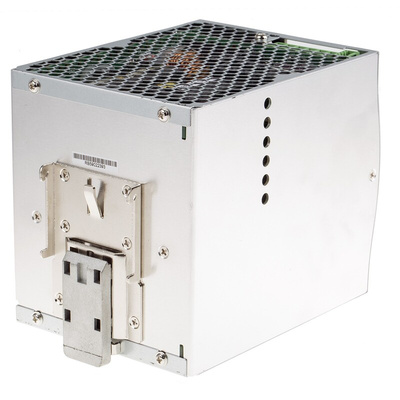

Economical and slim, the TDR is a 3 phase power supply. It can be installed on TS-35/7.5 or TS-35/15 mounting rails and has been designed to allow space saving within cabinets. This PSU conforms to EN61000-3-2 and has been designed with metal housing enhancing the PSUs power dissipation.
Due to the TDRs 340 V ac to 550 V ac wide input range, dual phase operation is possible.
The TDR series is an ideal choice for many industries, fitting various inductive or capacitive applications.

Features and Benefits

•Short circuit/Overload/Over voltage/Over temperature protections
•Can be installed on DIN Rail TS-35/7.5 or 15
•Cooling by free air convection
•UL 508 (industrial control equipment) approved
•EN61000-6-2 (EN50082-2) industrial immunity level
•100% full load burn-in test
•3 years warranty
•High efficiency 94.5% and low-power dissipation
•Built-in DC OK relay contact
•Current sharing up to 3840 W (3+1)
•Built-in constant current limiting circuit
•Built-in active PFC function compliance to EN61000-3-2
•Width only 110 mm
•3 phase 340 V ac to 550 V ac wide range input

Product Application Information

The TDR series PSU by Mean Well is ideal for use in industrial control systems, semiconductor fabrication equipment, factory automation and electro-mechanical apparatus.
