SDR-960-48, Mean Well SDR, DIN Rail Power Supply - 180 → 264V ac Input Voltage, 48V dc Output Voltage, 20A Output Current,, Блок питания

Номер производителя: SDR-960-48Производитель: Mean Well
Цена за шт.
79139.48 руб. *

Срок поставки: 3-5 недель


* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Mean Well SDR Series Single Output Industrial Power Supply

Economical and slim, the SDR range of power supplies (PSU) can be installed on TS-35/7.5 or TS-35/15 mounting rails and have been designed to allow space saving within cabinets. The entire series conforms to EN61000-3-2 and has been designed with metal housing enhancing the PSUs power dissipation.
The SDR series is an ideal choice for many industries, fitting various inductive or capacitive applications.

Features and Benefits

• Short circuit/Overload/Over voltage/Over temperature protections
• Can be installed on DIN Rail TS-35/7.5 or 15
• Cooling by free air convection
• UL 508 (industrial control equipment) approved
• EN61000-6-2 (EN50082-2) industrial immunity level
• 100% full load burn-in test
• 3 years warranty
• High efficiency 90% (SDR-75) 94% (SDR-960) and low-power dissipation
• 150% (SDR-75) 130% (SDR-960) peak load capability

Product Application Information

The SDR series PSU by Mean Well is ideal for use in industrial control systems, semiconductor fabrication equipment, factory automation and electro-mechanical apparatus.

Why use a DIN Rail power supply?

The flexibility of DIN Rail mounting systems enables quicker installation time as all devices are able to simply snap onto the metal rails. Power supplies can be easily organised on DIN Rails within enclosed wall boxes or in areas where there is limited space. Similar devices can be mounted next to each other reducing the amount of cabling required. Most power supplies are convection cooled so no cooling fans are needed.
DIN Rail AC to DC power supplies are widely used in many automation, instrumentation and industrial applications. They are used to power a wide variety of DC operated devices including sensors, motors, actuators, solenoids, relays and many more.

Points to consider when buying a DIN Rail power supply

DIN Rail size – There are three common types of DIN Rails. Top Hat, G section and C section. Most have a depth of 7.5 mm or 15 mm. It is wise to check that your power supply is compatible with your DIN Rail.
Protection types – It is important to choose a power supply that is protected against either short circuit, overload, over temperature or over voltage. Some power supplies also offer a hiccup mode which will allow the PSU to resume operation once the fault is cleared.
Fixed or adjustable output voltage or current – In test systems it is often convenient to have adjustable DC voltage however in other applications a fixed DC supply may be essential.
Cabling and wiring – The input/output lines to and from the power supply should be as short as possible with a large cross sectional area to help minimise noise and heat.
Efficiency – Choose a power supply that has an efficiency over 89% to minimise the amount of power dissipation, especially if the system relies on convection cooling.
Input voltage range – If the DIN Rail power supply you are buying is to be used in Europe and North America as well as the UK then a universal AC input range of 80 V ac to 264 V ac is required.
Standards – If the power supply is to be used in the USA for controlling electric motors then it will need to comply with Standard UL508, the safety standard for industrial control equipment.

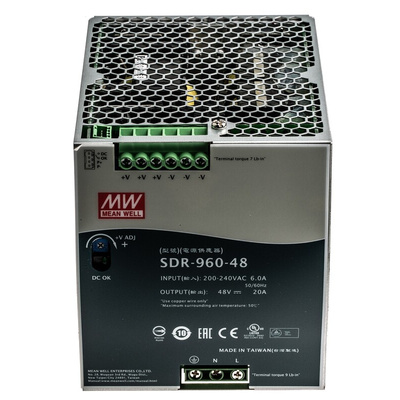

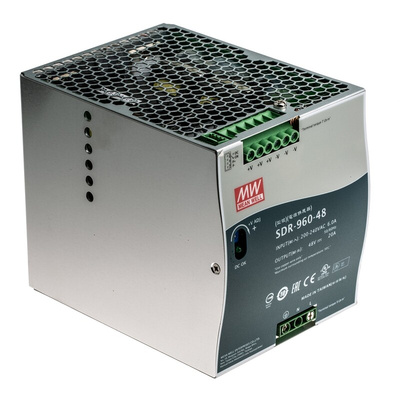

Mean Well SDR-960-48 Power Supply, 48 V, 20 A, 960 W

AC input 180 V ac to 264 V ac only
110 mm slim design
Built-in active PFC function compliance to EN61000-3-2
Built-in constant current limiting circuit
Current sharing up to 3840 W (3+1)
Built-in DC OK relay contact

Техническая спецификация
pdfSDR-960 Series specification sheet
pdfDeclaration Of Conformity
Время ожидания:
14 мс при 230 В перем. тока
Встречающиеся стандарты:
EN 61000-3-2, EN 61000-6-2, RoHS Compliant, TUV EN 60950-1, UL 508
Входная электрическая фаза:
Входное напряжение:
180 → 264В перем. тока
Входное напряжение переменного или постоянного тока:
Выходное напряжение переменного или постоянного тока:
Выходной ток:
0 → 20A
Диапазон входных частот:
47 → 63Гц
Защитные функции:
Over Temperature Protection, Over Voltage Protection, Overload Protection, Short Circuit Protection
Количество выходов:
Максимальная температура:
Максимальное входное напряжение:
264В перем. тока
Максимальное выходное напряжение:
55В пост. тока
Максимальный входной ток:
6 A при 230 В перем. тока
Минимальная температура:
Минимальное входное напряжение:
180В перем. тока
Минимальное выходное напряжение:
48В пост. тока
Мощность номинальная:
Напряжение выходное:
48 В пост. тока
Пульсации и шум:
250мВ Pk-Pk
125.2 x 110 x 150мм
Разрешенные конфигурации контуров:
Регулирование в линии:
Регулирование нагрузки:
Специальные функции:
Built-In Active PFC Function, Built-In Constant Current Limiting Circuit, Cooling by Free Air Convection, Installed on DIN Rail TS-35/7.5 or 15, Low-Power Dissipation, 3-Years Warranty, 100% Full Load Burn-In Test, 110 мм Slim Design, 130% Peak Load Capac
Среднее время безотказной работы:
Тип монтажа:
DIN Rail
Тип преобразования сигнала питания:
