XB4BS8444, Schneider Electric Harmony XB4 Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NC, IP66,

Schneider Electric Harmony XB4 Series - Emergency Stop Push Button

Introducing the world-class Harmony XB4 series of emergency stop pushbuttons by Schneider Electric. The range of XB4 provides you with an extra safeguard in your working environment. The products within the XB4 series are notably durable and can perform well within various environments.

Features and benefits

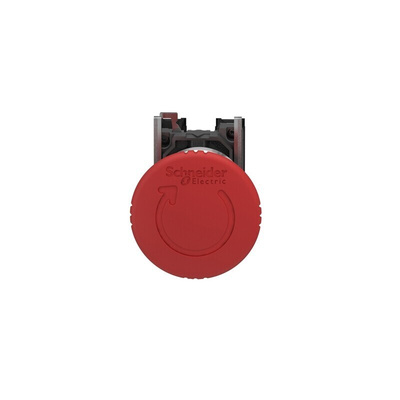

• Effortless to use "turn to release" functionality for easy reset once activated

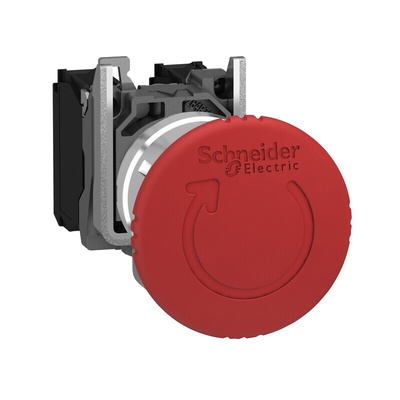

• Chromium plated metal panel with prominent red round push button, easily alerting to the eye

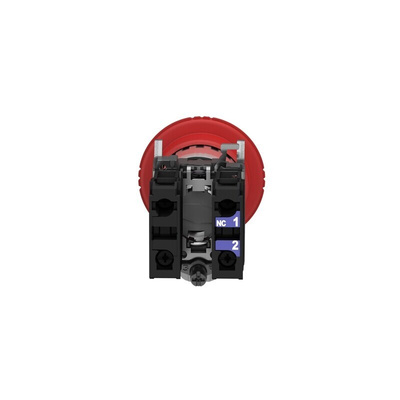

• 2 NC contacts, for simple configuration


• Short-circuit protection using a 10 A cartridge fuse which conforms to EN/IEC 60947-5-1


• Conforming to several industry standards including, EN/IEC 60204-1, 60947-1, 60947-5-1 and more


• Rated NEMA 13 & NEMA 4X, providing additional protection against environmental disturbances such as dust, oil or spraying of water (primarily fit for indoor use)


• The XB4 E-Stop buttons have a mechanical durability of 300000 cycles


• The base unit E-Stop works well in temperatures ranging from -40°C to 70°C


• IP 65, IP 66, IP 67 & IP 69K rated conforming to IEC 60536, further protecting your device from dust ("dust tight rated") and protected against heavy seas or powerful jet washers at 7,000,000 Pa at 55 degrees celsius


• Schneider Green Premium product as standard across the XB6 Emergency Stop Button range


• 8-month manufacturer warranty with Schneider

Applications

• Machine, chemical & Marine applications (particularly with water/chemical involvement).


• Service sectors such as restaurants, kitchens, car washes and more.

Schneider Electric Emergency Stop Push Button, 40mm Actuator Diameter, IP69K Rating - Harmony XB4 Series - XB4BS8444

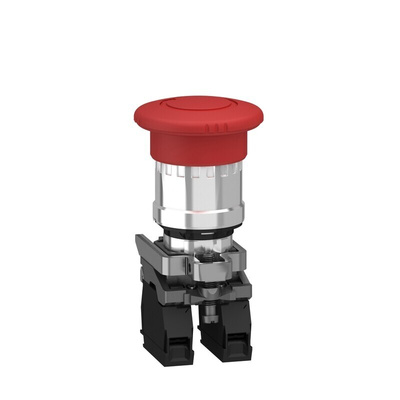

Need a way to stop malfunctioning machinery in its tracks? Take charge with this emergency stop push button from Schneider Electric. It instantly shuts down faulty gear, letting you carry out maintenance safely. An IP69K rating indicates it's shielded from dust and withstands the steam-clean water jets you get in tough industrial workplaces. The large 40mm mushroom actuator makes it easy to press even when wearing gloves. By latching in place until twisted, this push button cuts the risk of hazardous hardware being accidentally reactivated.

Features & Benefits

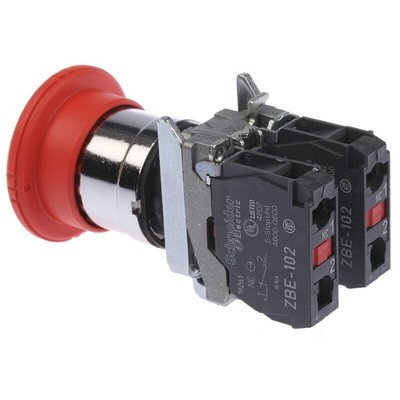

• Two contacts to control two circuits at once, efficiently covering linked equipment
• Electrical service life of one million cycles, so it's highly reliable
• Standard 22mm push button cutout means there's no need to bore a new hole
• Bright red colour makes it easy to spot in emergencies

Applications

• Plastic processing
• Aerospace industry
• Agricultural equipment

Where should I use an emergency stop push button?

All industrial and commercial equipment needs an emergency stop device like this one to prevent injury and damage. It's advisable to install E-stops away from other push button controls to avoid confusion.
