686604050001, Wurth Elektronik WR-FFC FFC Jumper Cable, 1mm Pitch, 4 Way, 50mm Cable Length, 1 A, 60 V ac

1222505
Номер производителя: 686604050001Производитель: Wurth Elektronik
Цена за шт.
933.00 руб. (С НДС) *
Количество 5+ 10+ 50+ 250+
Цена 825.00 руб. 756.00 руб. 717.00 руб. 663.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

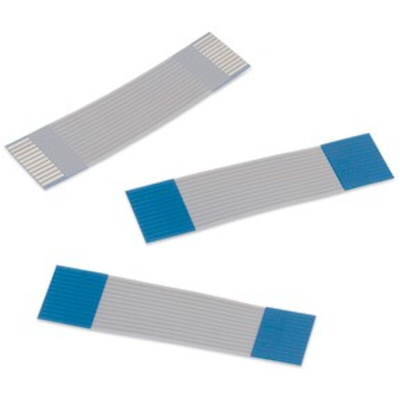

Wurth WR-FFC 1.00 mm pitch Type 1 Flat Flexible (FFC) Jumper Cables

WR-FFC series Type 1 1.00mm pitch flat flexible (FFC) jumper cables for achieving secure, lightweight, low profile, high density space saving board to board connections. These WR-FFC series FFC jumper cables are lightweight and have a high flexibility rating with a flexing test of 180° >20 times. The increased flexibility of these FFC cables enables complex board to board connections to be made in compact and difficult to reach applications. The contacts of the Type 1 FFC cables are on the same side at each end of the cable. A blue PET support tape at either end of the FFC cable helps facilitate ZIF or LIF connections when mated with board mount FPC connectors. These 1.0mm WR-FFC series Type 1 FFC jumper cables are available in standard lengths of 50mm to 200mm with a range of up to 50 circuits

Features and Benefits

Highly flexible and ideal for use in complex, difficult to access applications
Low profile and lightweight, ideal for saving space and costs in high density applications
Blue PET support tape to facilitate ZIF & LIF connections
Simple assembly process
Variety of lengths and circuits

Applications

These WR-FFC series Type 1.0mm FFC jumper cables provide low cost, space saving connections in various high-flex, high density board to board applications across various industries. They are particularly suitable for providing electrical connections between PCBs and display boards. Applications include: LCD appliances plasma display panels printers, scanners, DVD players and Notebook PCs

Wurth 1.0mm FPC Connectors and Jumper Cables

Техническая спецификация
pdfWR-FFC 1mm Type 1 FFC jumper cable
Диапазон рабочих температур:
-30 +105 °C
Кабель - длина:
50мм
Номинал тока:
1 A
Номинальное напряжение:
60 В перем. тока
Окончание:
Crimp
Покрытие контактов:
Олово
Разъем 1 Количество путей:
4
Разъем 1 Количество строк:
1
Разъем 2 Количество путей:
4
Разъем 2 Количество строк:
1
Серия:
WR-FFC
Шаг:
1мм
