RS PRO Slow Action Foot Switch - SP-CO, 10 A Contact Current, 600V Contact Voltage, Ножной выключатель

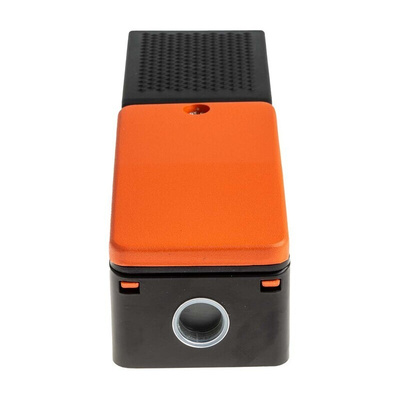

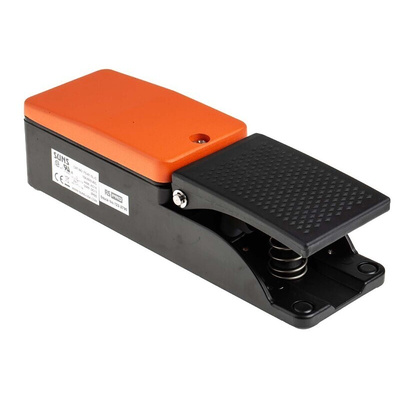

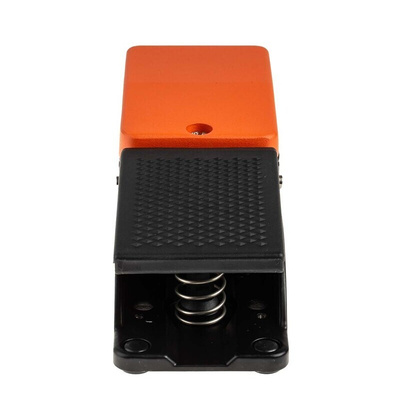

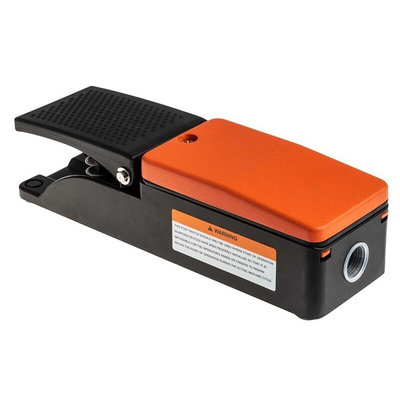

RS PRO Slow Action Heavy Duty Foot Switch - SP-CO, 10 A Contact Current, 600 V Contact Voltage

Use this slow action, foot-operated SPCO (single pole, change over) switch from RS PRO as an alternative to a hand-operated switch for safety in high-risk settings. With an aluminium alloy diecast body, this product is very robust and suitable for rugged environments.

Part of the RS PRO range of footswitches, the FS-6 Series features a slow action break before making SPDT (single pole, double throw) contact. These tough switches are available with or without a protective guard cover. You can wire it easily thanks to its screw terminals with self-lifting clamps. The contacts are galvanically separated for improved safety. The switch features a high current-carrying capacity. and also ensures a continually powered circuit.

This heavy-duty footswitch is IP65 compliant so it's dirt-resistant and protected from water projected from a nozzle. In addition, it's UL/CSA (E216958) approved, meeting stringent safety standards.

Features and Benefits

• Slow action, heavy-duty foot switch
• Dimensions of (W) 70 mm x (L) 220 mm x (H) 60mm
• Contact current rating of 10 A
• Contact configuration of SPCO (single pole change over)
• No guard cover
• Silver contact material
• IP rating of IP65
• Contact voltage rating of 600 V AC, 500 V DC
• Suitable for heavy-duty environments
• Operating temperature of -30°C to +80°C
• Dimensions of 164 mm x 255 mm x 157 mm
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet

RS PRO Datasheet
