RS PRO Straight, Panel Mount, Socket Type A USB Connector, Разъем

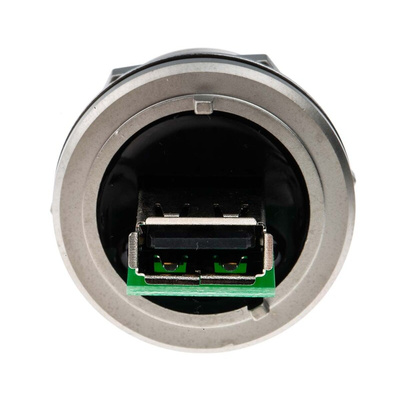

RS PRO USB Connector, Panel Mount, Socket, Solder, Straight-Single Port

Looking for a USB connector that will handle the elements? This RS PRO USB connector panel-mount socket is waterproof and tailored to outdoor LED displays and wireless access points. With a current rating of 1.5 A and a voltage rating of 500 V, it has one port and is designed for use with female USB-A connectors.

The panel-mount socket has copper-alloy gold-plated contacts for your USB signal. This is set in a copper-alloy nickel-plated shell. An IP68 rating means the unit is able to resist water, dust and dirt. The connector has tight red silicone O-Rings, which further weatherproof the connection. With EMI (electromagnetic interference) shield plates, it also protects your signal from external interference.

This connector conforms to a host of international standards that ensure protection from damage due to electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). As part of our RS PRO range, it's made from high-grade materials and has been stringently tested for quality and durability. Connectors such as this are often found in medical and industrial environments.

Features and Benefits

• 1 female port
• Straight body orientation
• Copper alloy contact material
• 1.5 A current rating
• 500 V rating
• Minimum operating temperature of -40°C
• Maximum operating temperature of +105°C
• IP68 rating (resistant to water and dirt)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS PRO Datasheet
