RS PRO Straight, Panel Mount, Socket Type A IP68 USB Connector, Разъем

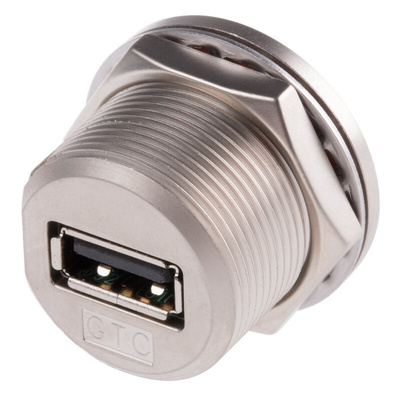

RS PRO Waterproof Panel Mount Type A USB Connector (IP68)

A highly reliable and watertight Type A USB connector designed for panel mounting and suitable for connection or charging a wide range of devices and equipment.
Metal construction featuring Copper Alloy contacts with a Gold plating housed in a Nickel plated Copper Alloy shell for excellent conductivity, corrosion protection and wear resistance.
The IP68 USB C connector is complete with a red Silicone O-ring to ensure a tight waterproof grading, EMI shield plates to reduce interference and rear potted panel mount connectors ensuring a IP68 seal on the panel even when unmated.
Suitable for panel and cable mounting and rated to IP68 for protection from dust and water the USB socket is versatile, tough, hardwearing and suitable for use in harsh environments.

Features and Benefits

• USB-A panel mount jack


• IP68 rated


• C4 size


• Gold plated copper contacts for corrosion resistance


• Minimum operating temperature of -40°C


• Maximum operating temperature of +105°C


• Voltage rating of 500V


• 1.5 A current rating


• Dimensions of 33 x 28.6 x 23.8 mm

For a suitable dust cap please see RS PRO 125-7930
For an IP68 USB cable please see RS PRO 122-3023

Why RS PRO?

Looking to reduce costs but keep the same quality?
With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.
Trusted by engineers the world over, we want you to be confident that you’re receiving the exceptional quality, reliability and the best value for money.

Dimensional Drawing

RS PRO Datasheet
