RS PRO 9 Way Panel Mount D-sub Connector Socket, Разъем

RS PRO 9 Way Panel Mount D-sub Connector Socket

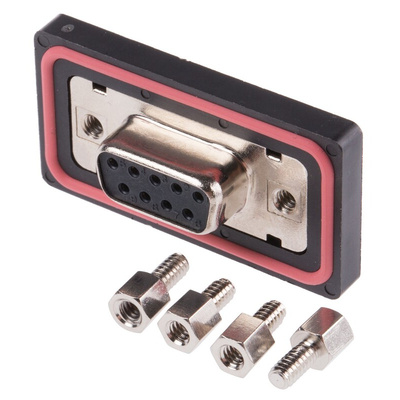

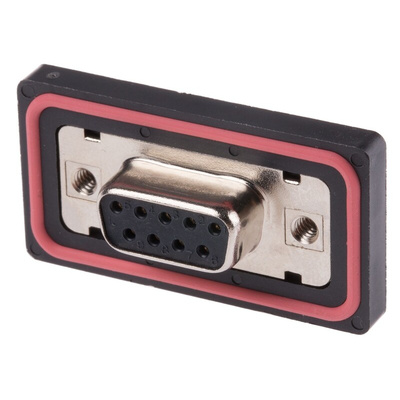

This RS PRO piece is a panel-mounting D-sub connector socket with nine contacts. D-sub electronic connectors are commonly used to create secure connections and to transfer power or information between devices. They come in different types and sizes, which makes them exceptionally versatile.

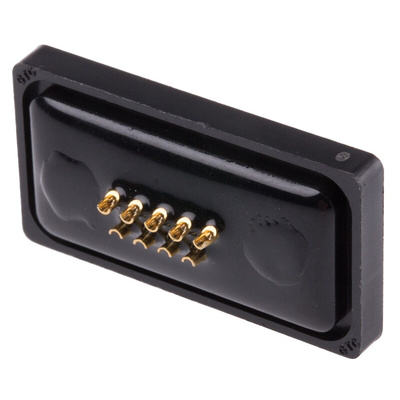

This D-sub connector socket has a durable polyamide housing and red silicone O-ring seals, which make it strong and waterproof. The shell is made from high-quality cold rolled steel (SPCC) with nickel plating to make sure it will resist wear and corrosion. The nine contacts are manufactured from copper alloy with gold coating, so you can be sure the connection is reliable.
This connector is an excellent choice for applications that need to be protected from water and dust. The unit is rigorously tested against electrostatic discharge (ESD) criteria. It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, so you can be certain the risk of discharge is reduced.

Features and Benefits

• Straight body orientation
• Copper alloy contact material
• Gold contact plating
• Current rating of 5 A
• Waterproof D-Sub D connector type
• D-sub shell size E
• Dimensions of 39.4 (length) x 21 (width) x 16.8 mm (depth)
• Female gender
• PBT (polybutylene terephthalate) housing material
• Maximum operating temperature of +105°C
• Minimum operating temperature of -40°C
• Panel mounting type
• Nine contacts
• GTC sealed series
• Solder termination method
• Voltage rating of 1 kV
