RS PRO 9 Way Cable Mount D-sub Connector Socket, Разъем

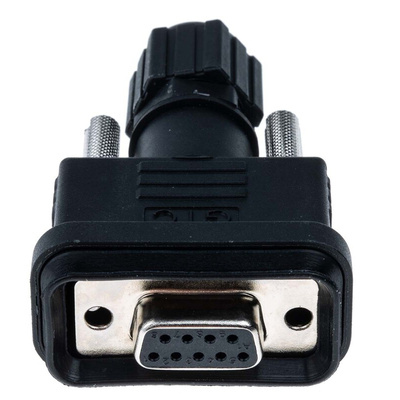

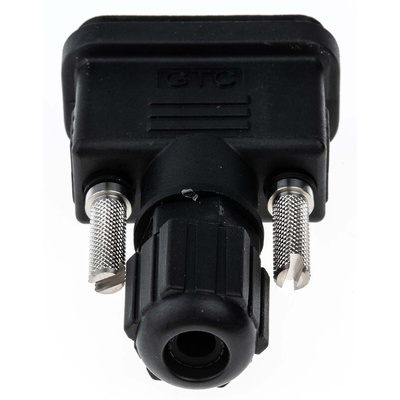

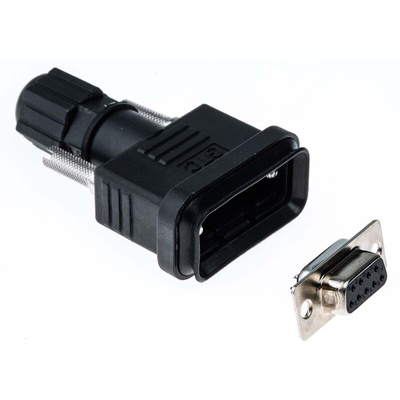

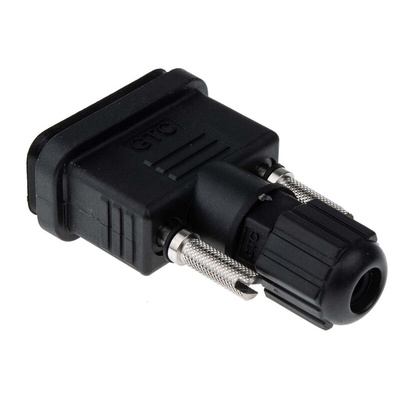

RS PRO 9 Way Cable Mount D-Sub Connector Plug

This sturdy RS PRO 9-way cable-mount D-Sub connector plug is designed to be used in a range of commercial and industrial applications including computer interfacing.
The straight-orientated female plug is sturdy and has an IP67 rating meaning it's both waterproof and will keep dust out. This is down to its study design which uses EDPM (ethylene propylene diene monomer) rubber pads, silicone cable end gaskets and reliably sealed solder bucket connectors to keep the assembly secure.

This plug has a tough steel shell which not only adds to its durability but is also plated with nickel to avoid corrosion over time. The gold-coated contacts are insulated with the thermoplastic polymer PBT (polybutylene terephthalate) and made from a premium copper alloy.

The plug contains low levels of dangerous material making it compliant with RoHS (Restriction of Hazardous Substances) standards.

Features and Benefits

• Nine female copper-alloy contacts plated in gold
• Straight body orientation
• E-size waterproof D-Sub connector
• Thermoplastic housing material for insulation
• 250 V dc voltage rating
• Measures 40 mm x 21 mm x 67.5 mm
• Cable mounting
• Solder termination

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS PRO Datasheet
