RS PRO 9 Way Cable Mount D-sub Connector Plug, Разъем

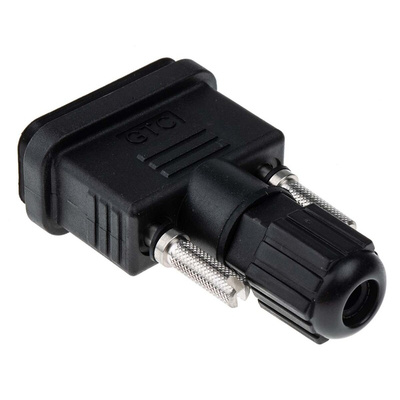

RS PRO 9 Way Cable Mount D-Sub Connector Plug

Used to easily set up a circuit board in the field, this RS PRO 9 way cable mount D-Sub connector plug is made to handle demanding conditions.

The straight-orientated male plug has a rugged waterproof design. It has silicone cable-end gaskets and rubber pads, as well as fully-sealed solder bucket connectors. These contribute to its IP67 rating, which means the unit will keep out dust and water. For durability, this plug has a robust steel shell that's plated with nickel to prevent corrosion. The gold-coated contacts are made from a high-grade copper alloy and insulated with the thermoplastic polymer PBT (polybutylene terephthalate).

RoHS (Restriction of Hazardous Substances) compliant, the plug contains low levels of dangerous materials. It operates safely at temperatures between -40°C to +80°C and is used throughout industry for computer interfaces.

Features and Benefits

• 9 male copper-alloy contacts plated in gold
• Straight body orientation
• E-size waterproof D-Sub connector
• PBT housing material for insulation
• 5 A current rating
• 1 kV AC voltage rating
• Measures 40 mm x 21 mm x 67.5 mm
• Minimum operating temperature of -40°C
• Maximum operating temperature of +80°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing
