RS PRO 15 Way Cable Mount D-sub Connector Socket, Разъем

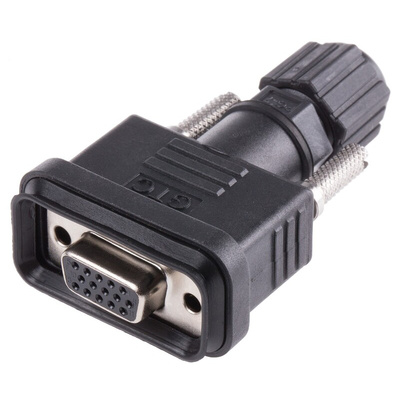

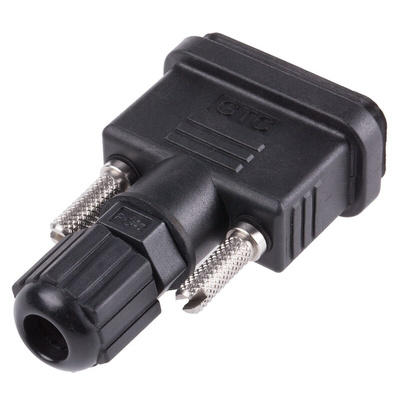

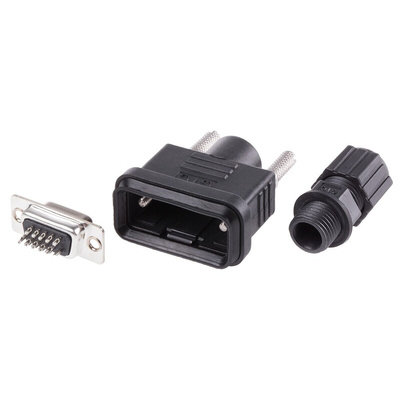

RS PRO 15 Way Cable Mounting D-sub Connector Socket

Looking for a waterproof and reliable D-sub connector socket? This RS PRO unit is a great choice when you need a waterproof and field-installable connector socket.
The connector socket includes a silicone cable gasket and ethylene propylene diene monomer (EDPM) rubber pads to guarantee that the socket and the wiring are well insulated and resistant to abrasion. The shell is manufactured from high-quality cold-rolled steel (SPCC) with nickel plating, so you can rest assured it will resist wear and corrosion well. The nine contacts are made from copper alloy with gold plating to ensure they are reliable and also resistant to wear.
This connector is especially suitable for applications where you need protection from water and dust. The unit is rigorously tested against electrostatic discharge (ESD) criteria. It conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, so you can be sure the risk of ESD is reduced.

Features and Benefits

• Straight body orientation
• Copper alloy contact material
• Gold contact plating
• Current rating of 5 V
• Waterproof D-Sub D connector type
• D-sub shell size E
• Dimensions of 40 (length) x 21 (width) x 67.5 mm (depth)
• Female gender
• PBT (polybutylene terephthalate) housing material
• Maximum operating temperature of +80°C
• Minimum operating temperature of -40°C
• Cable mounting type
• 15 contacts
• GTC sealed series
• Solder termination method
• Voltage rating of 1 kV AC
