RS PRO 15 Way Cable Mount D-sub Connector Plug, Разъем

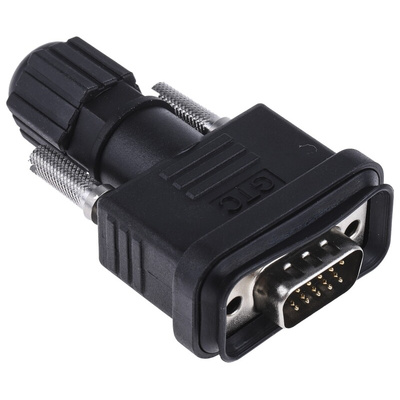

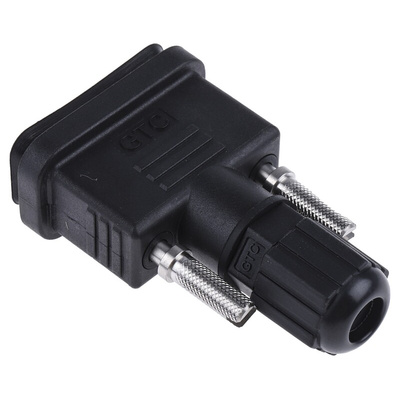

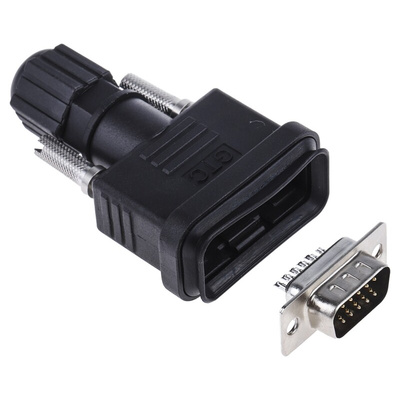

RS PRO 15 Way Cable Mount D-Sub Connector Plug

Use this RS PRO D-sub connector when you need a waterproof and field-installable plug. Its IP67 rating means it's protected against submersion in water for up to 30 minutes, making it a good choice for high-moisture or frequently washed-down environments.


The plug and wiring are well insulated and abrasion-resistant thanks to the silicone gasket and PBT (polybutylene terephthalate) housing. Its nickel-plated cold-rolled steel shell makes it resistant to corrosion and wear for use in tough environments. The 15 contacts provide durability and reliable electrical conductivity as they're made from gold-plated copper alloy.


You can use this plug for any application where you need to protect components against dust and water. It conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, meaning the risk of electrostatic discharge (ESD) is minimal.

Features and Benefits

• Straight body orientation


• Copper alloy contact material


• Gold contact plating


• Current rating of 5 A


• Waterproof D-sub connector type


• D-sub shell size E


• Dimensions of 40 (length) x 21 (width) x 67.5 mm (depth)


• Male gender


• PBT (polybutylene terephthalate) housing material


• Minimum operating temperature of -40°C


• Maximum operating temperature of +80°C


• Cable mounting type


• 15 contacts


• GTC sealed series


• Solder termination method


• Voltage rating of 1 kV AC

Dimensional Drawing

RS PRO Datasheet
